Référence : TWH27N
Prix catalogue :
2 904,00 €
HTVA 21,00 %
| Poids brut (kg) | 0 |
| Eclass | 27300000 |
| UNSPSC Code | 27121600 |

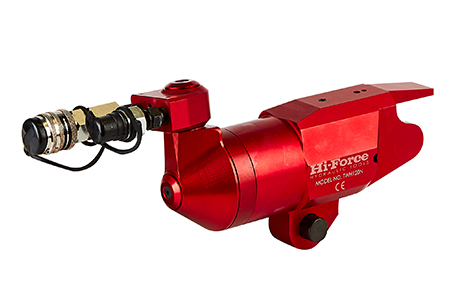

hydraulic torque wrench drive cylinder
torque capacity 2625 Nm / 1906 lbf.ft
24-46 mm AF / 1.1/16" -1.13/16" AF, 3068
Nm / 2228 lbf.ft with 50-60 mm AF /
2" -2.3/8" AF, accuracy +/- 3%, 700 bar max.
working pressure advance, 100 bar max. working
pressure retract, double acting,
lightweight aluminium construction, 360ºx360º
uniswivel, quick connect couplers.
torque capacity 2625 Nm / 1906 lbf.ft
24-46 mm AF / 1.1/16" -1.13/16" AF, 3068
Nm / 2228 lbf.ft with 50-60 mm AF /
2" -2.3/8" AF, accuracy +/- 3%, 700 bar max.
working pressure advance, 100 bar max. working
pressure retract, double acting,
lightweight aluminium construction, 360ºx360º
uniswivel, quick connect couplers.
