Référence : 5105 12 158
Prix catalogue :
1 180,09 €
HTVA 21,00 %
| Code Intrastat | 0 |
| Poids brut (kg) | 0 |
| Pays d'origine | ES |
| Eclass | 37010000 |
| UNSPSC Code | 40140000 |

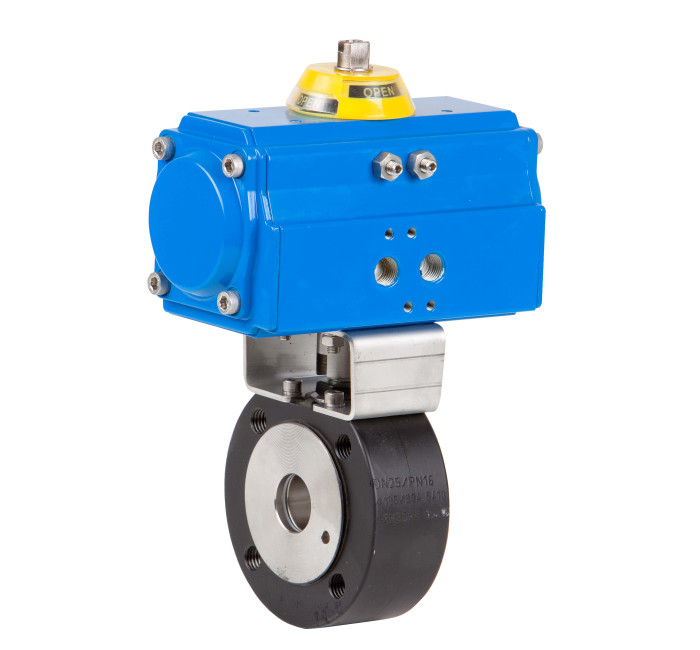

Pneumatic actuated carbon steel ball valve WAFER type
- Size DN 100
- Full bore
- Installation between flanges EN 1092 PN16
- Carbon Steel ASTM A 105 body
- Stainless steel AISI 304 ball
- Stem in stainless steel AISI 304
- PTFE seats
- Maximal working pressure 16 bar
- Temperature range from -20°C to +180°C
- Pneumatic actuation
- Size : GNP-300
- Rotation angle : 90°, adjustable -5° to +5° and +80° to +95
- Double acting
- Piston material : Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Temperature range: Standard : -20 °C to +80 °C
- Operating pressure min. 6 bar
- Size DN 100
- Full bore
- Installation between flanges EN 1092 PN16
- Carbon Steel ASTM A 105 body
- Stainless steel AISI 304 ball
- Stem in stainless steel AISI 304
- PTFE seats
- Maximal working pressure 16 bar
- Temperature range from -20°C to +180°C
- Pneumatic actuation
- Size : GNP-300
- Rotation angle : 90°, adjustable -5° to +5° and +80° to +95
- Double acting
- Piston material : Die-cast aluminium
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Temperature range: Standard : -20 °C to +80 °C
- Operating pressure min. 6 bar
