Reference : STTX.009.034
Catalog Price :
€188.20
Tax excluded 21.00 %
| Body material | PP/SAN |
| Sealing | NBR |
| Filtration | 25 µm |
| Type of connection | Threaded male |
| Diameter of connection | 3/4'' |
| PN | 10 |
| Fluid working Temp | 0°C to (+)50°C |
| Operation | Horizontal mounting only |
| Specifications | DUO CTN version filter |
| Size | NW25 |
| Compatibility - fluids | For water and drinking water |
| Customs duty number | 8421-2100 |
| Gross weight (kg) | 3,4 |
| Eclass | 37010000 |
| Country of origin | BE |
| UNSPSC Code | 40140000 |

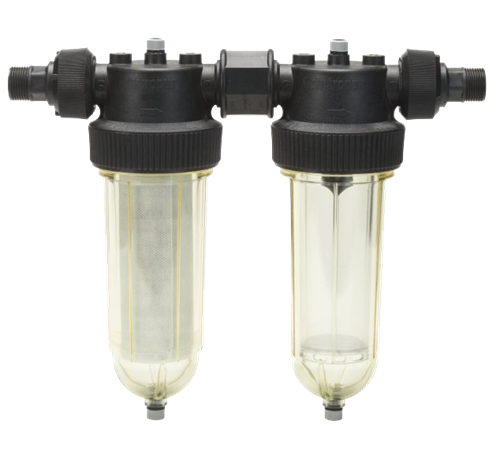

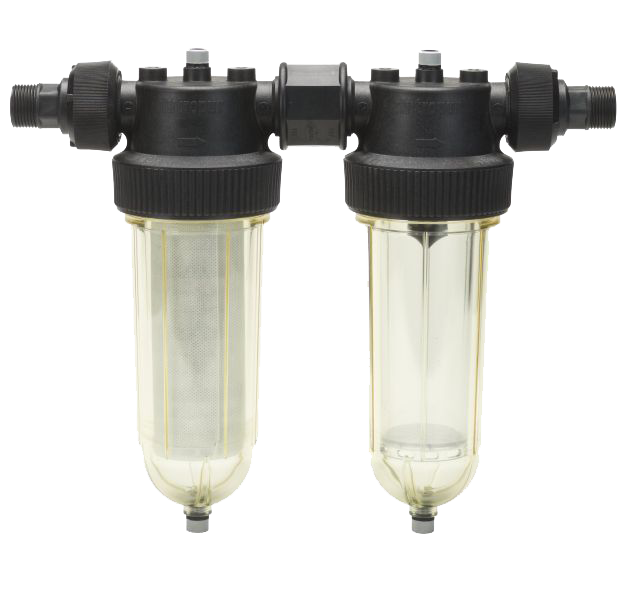

DUO CTN in-line filter :
- Filtration: 25 µm
- Body in Polypropylene and Styrene crylonitrile
- Sealing in NBR
- Threaded connection - Male-Male in 3/4'' and 1"'.
- PN10
- Without control
- Working temperature of the fluid: 0°C to (+)50°C
Consisting of:
- STTX.007
- NTC cartridge filled with activated carbon
- 2 PP wall mountings
- 2 x 3/4'' connections + 2 x 1'' connections
- 1 disassembly key
- 1 assembly sleeve for filters (Type STAX.007)
- 1 filter sleeve 25µm
- Filtration: 25 µm
- Body in Polypropylene and Styrene crylonitrile
- Sealing in NBR
- Threaded connection - Male-Male in 3/4'' and 1"'.
- PN10
- Without control
- Working temperature of the fluid: 0°C to (+)50°C
Consisting of:
- STTX.007
- NTC cartridge filled with activated carbon
- 2 PP wall mountings
- 2 x 3/4'' connections + 2 x 1'' connections
- 1 disassembly key
- 1 assembly sleeve for filters (Type STAX.007)
- 1 filter sleeve 25µm
