Reference : STTX.004.064
Brand reference : 2460 08
Catalog Price :
€64.68
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | PTFE |
| Filtration | 1000 µm |
| Type of connection | Threaded Female |
| Diameter of connection | 1''1/2 |
| PN | 40 |
| Fluid working Temp | (-)30°C to (+)240°C |
| Operation | Horizontal or vertical mounting |
| Compatibility - fluids | For water, hot water, steam, compressed air and aggressive fluids |
| Customs duty number | 8421-9990 |
| Gross weight (kg) | 1,15 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

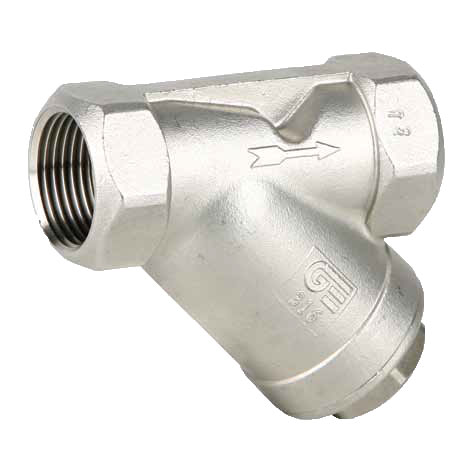

Y-Filter :
- Threaded connection G 1"1/2 according to ISO 7-1 (EN 10226-1)
- Maximum operating pressure 40 bar
- Flow coefficient Kv 26,60 m³/h
- Stainless steel housing 1.4408 (CF8M)
- AISI 316 stainless steel strainer
- PTFE cover gasket
- 1.0mm filter element
- Operating temperature range -30°C to +240°C
- Threaded connection G 1"1/2 according to ISO 7-1 (EN 10226-1)
- Maximum operating pressure 40 bar
- Flow coefficient Kv 26,60 m³/h
- Stainless steel housing 1.4408 (CF8M)
- AISI 316 stainless steel strainer
- PTFE cover gasket
- 1.0mm filter element
- Operating temperature range -30°C to +240°C
