Reference : STFX.003.125
Catalog Price :
€1,390.70
Tax excluded 21.00 %
| Body material | Carbon steel |
| Sealing | Graphite |
| Filtration | 1600 µm |
| Type of connection | With flanges |
| Diameter of connection | DN125 |
| GN | 25/40 |
| PN | 40 |
| Fluid working Temp | (-)20°C to (+)400°C |
| Operation | Horizontal or vertical mounting with descending fluid |
| Compatibility - fluids | For water, hot water, steam and compressed air |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 57 |
| Eclass | 37010000 |
| Country of origin | FR |
| UNSPSC Code | 40140000 |

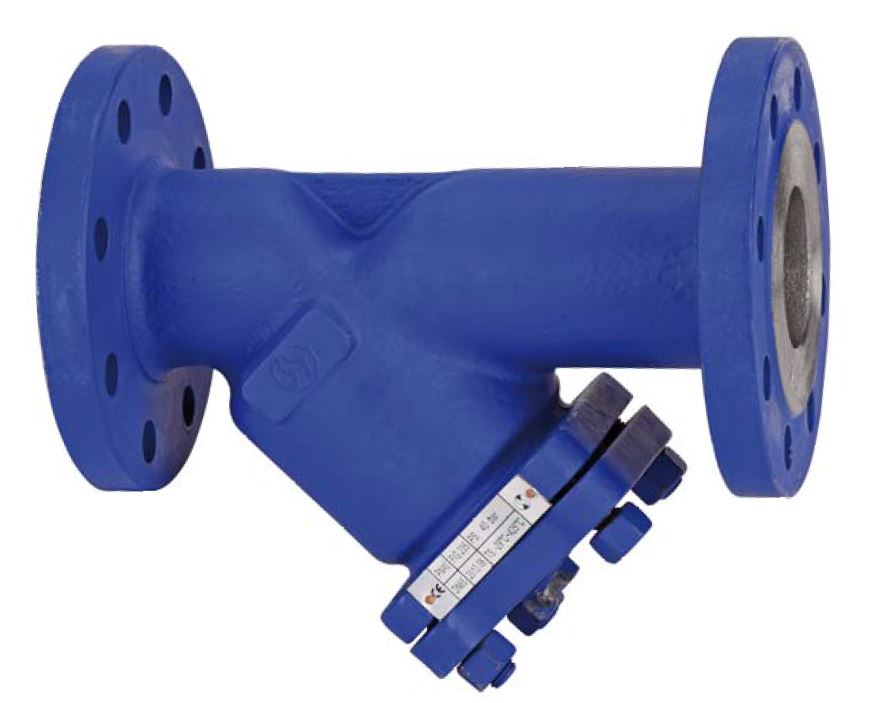

Y-Filter :
- Filtration: 1600 µm
- Carbon steel body
- Graphite sealing
- Flanged connection in DN125
- PN40
- GN40
- Operation: Horizontal or vertical installation with downward flow
- Without control
- Operating temperature of the fluid : (-)20°C to (+)400°C
- Filtration: 1600 µm
- Carbon steel body
- Graphite sealing
- Flanged connection in DN125
- PN40
- GN40
- Operation: Horizontal or vertical installation with downward flow
- Without control
- Operating temperature of the fluid : (-)20°C to (+)400°C
