Reference : STFX.002.150
Catalog Price :
€1,177.42
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | Graphite |
| Filtration | 1600 µm |
| Type of connection | With flanges |
| Diameter of connection | DN150 |
| GN | 10/16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)300°C |
| Operation | Horizontal or vertical mounting with descending fluid |
| Compatibility - fluids | For water, hot water, steam and compressed air |
| Customs duty number | 8481-9000 |
| Gross weight (kg) | 54,5 |
| Eclass | 37010000 |
| Country of origin | PL |
| UNSPSC Code | 40140000 |

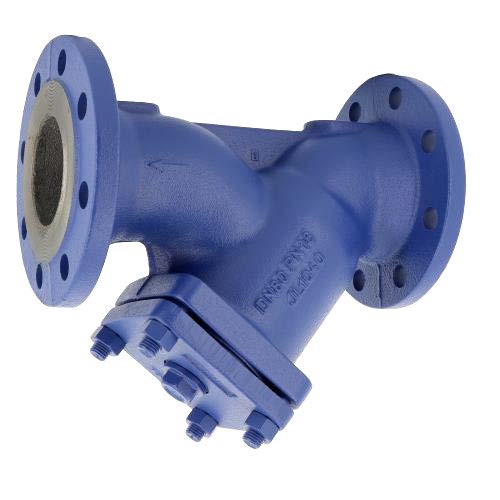

Y-Filter with high temperature flanges
- DN 150
- Flanged connection to EN 1092-2 PN16
- Nominal pressure 16 bar
- Cast iron body and cover EN GJL-250
- Stainless steel strainer ASTM A182 F 304
- Graphite cover gasket
- Temperature range -10°C to +300°C
- Filtration : 1.6mm
- Length between flanges to DIN EN 558-1, series 1
- With drain plug G 1"1/2
- Horizontal or vertical installation with descending fluid
- Use: For filtration of high temperature, hot water, steam, air, water treatment and irrigation systems
- DN 150
- Flanged connection to EN 1092-2 PN16
- Nominal pressure 16 bar
- Cast iron body and cover EN GJL-250
- Stainless steel strainer ASTM A182 F 304
- Graphite cover gasket
- Temperature range -10°C to +300°C
- Filtration : 1.6mm
- Length between flanges to DIN EN 558-1, series 1
- With drain plug G 1"1/2
- Horizontal or vertical installation with descending fluid
- Use: For filtration of high temperature, hot water, steam, air, water treatment and irrigation systems
