Reference : LAT.FRX.01.38
Catalog Price :
€740.57
Tax excluded 21.00 %
| Specifications | Particulate |
| Body material | 316L Stainless Steel |
| Piston seal material | FPM (Viton®) |
| Tank material | Stainless Steel 316L |
| Filtration | 50 µm |
| Diameter of connection | 3/8" |
| Max flow at upstream pressure | 8 bar |
| Max flow (ANR) | 1400 l/min |
| Regulation pressure | 1,5 to 15 bar |
| Max input pressure at 23°C | 30 bar |
| Set pressure | 6 bar |
| ?P load loss | 1 bar |
| Fluid working Temp | (-)20°C to (+)80°C |
| Compatibility - fluids | Compressed air and toxic gas |
| Customs duty number | 8481-1005 |
| Gross weight (kg) | 1,4 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |

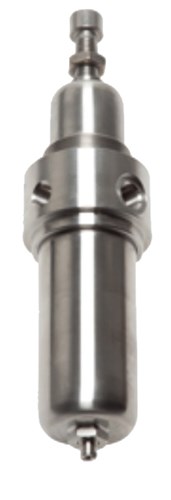

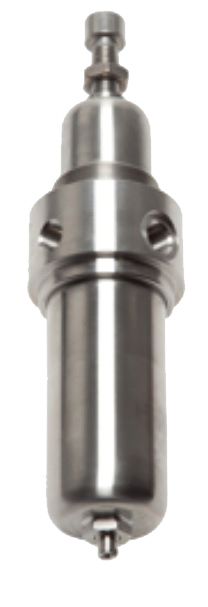

Filter regulator, 1.4404, G 3/8", 1,5 - 15bar (Standard)
Associated products
LAT.ACC.02.14
HALTEWINKEL FÜR R/FR 14/38 ES MIT MUTTER
Stock > 1
Stock > 1
