| Supplier series | 160 |
| Body material | Aluminum |
| Tank material | Metal |
| Filtration | 30 µm |
| Diameter of connection | 1"1/2 |
| Max flow at upstream pressure | 10 bar |
| Max flow (ANR) | 13500 l/min |
| Regulation pressure | 0,5 to 16 bar |
| Max input pressure at 23°C | 17,5 bar |
| Max input pressure at 50°C | 12 bar |
| Set pressure | 6,3 bar |
| ?P load loss | 1 bar |
| Fluid working Temp | (-)10°C to (+)50°C |
| Compatibility - fluids | Air or neutral gas |
| Customs duty number | 8481-1005 |
| Gross weight (kg) | 1,69 |
| Eclass | 27290000 |
| Country of origin | FR |
| UNSPSC Code | 27131700 |

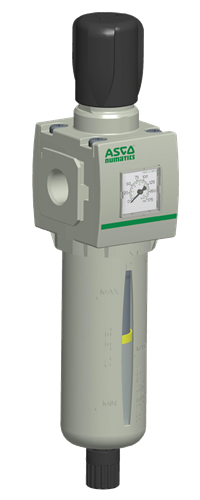

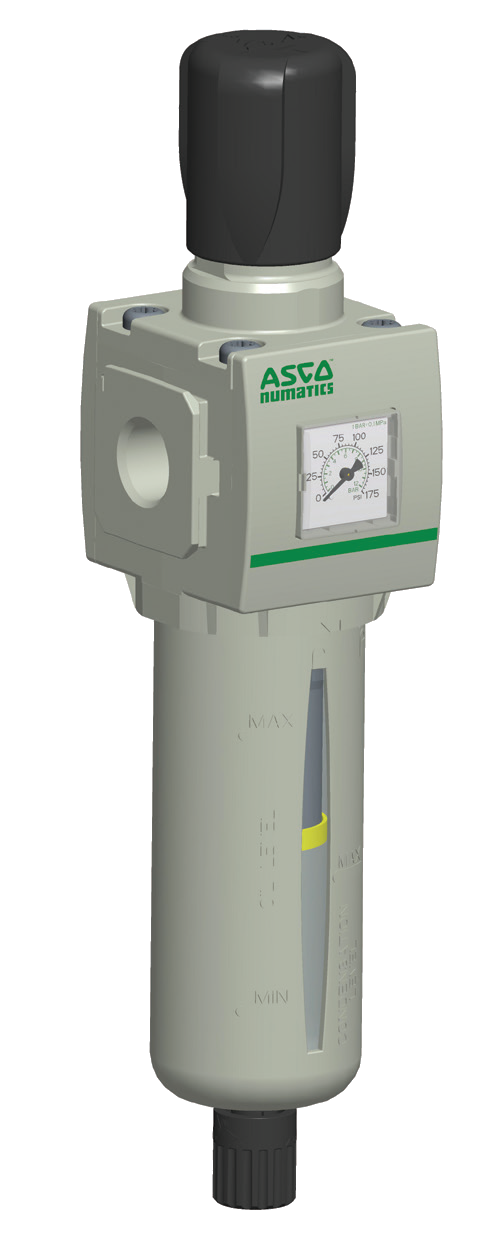

FILTER - REGULATOR MODULAIR 160 SERIES 342 FILTER-REGULATOR 30 MICRON METAL BOWL WITH VISUALIZATION SEMI AUTOMATIC DRAIN PRESSURE 0-16 BAR WITHOUT PRESSURE GAUGE G1 1/2
