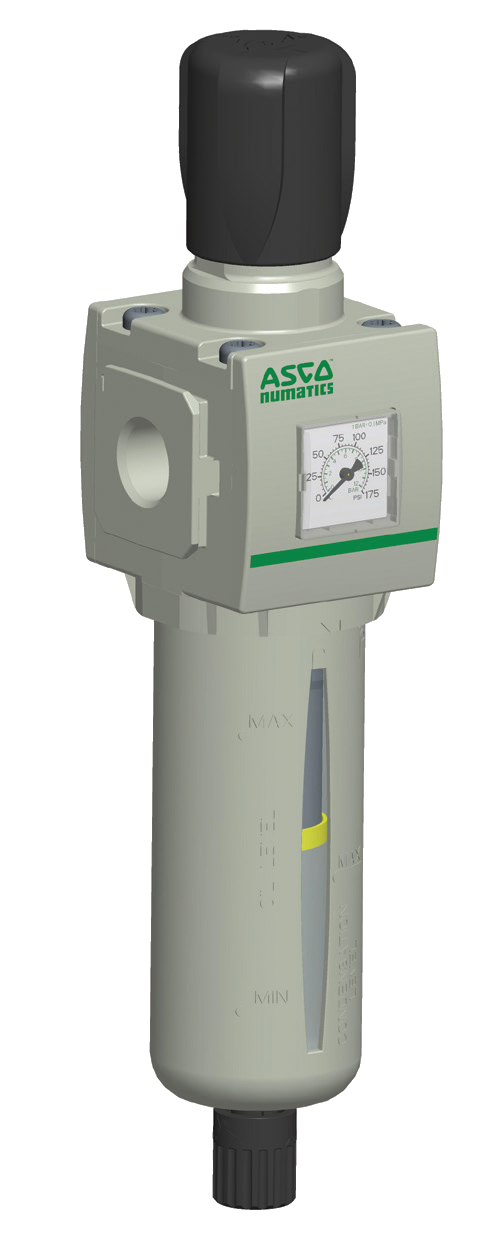

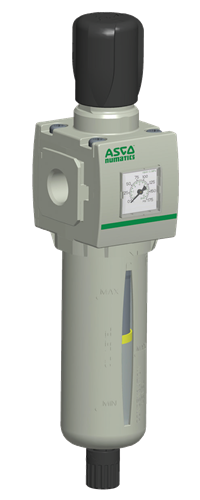

Reference : G651ACNP2GA00HN
Catalog Price :
€131.56
Tax excluded 21.00 %
| Supplier series | 651 |
| Specifications | Coalescers |
| Body material | Aluminum |
| Piston seal material | NBR |
| Tank material | Polycarbonate |
| Filtration | 0,01 µm |
| Diameter of connection | 1/4" |
| Max flow at upstream pressure | 10 bar |
| Max flow (ANR) | 200 l/min |
| Regulation pressure | 0,5 to 10 bar |
| Max input pressure at 23°C | 16 bar |
| Set pressure | 6,3 bar |
| ?P load loss | 0,35 bar |
| Fluid working Temp | (+)1,7°C to (+)50°C |
| Compatibility - fluids | Air or neutral gas |
| Customs duty number | 8481-1005 |
| Gross weight (kg) | 0 |
| Eclass | 27290000 |
| UNSPSC Code | 27131700 |
