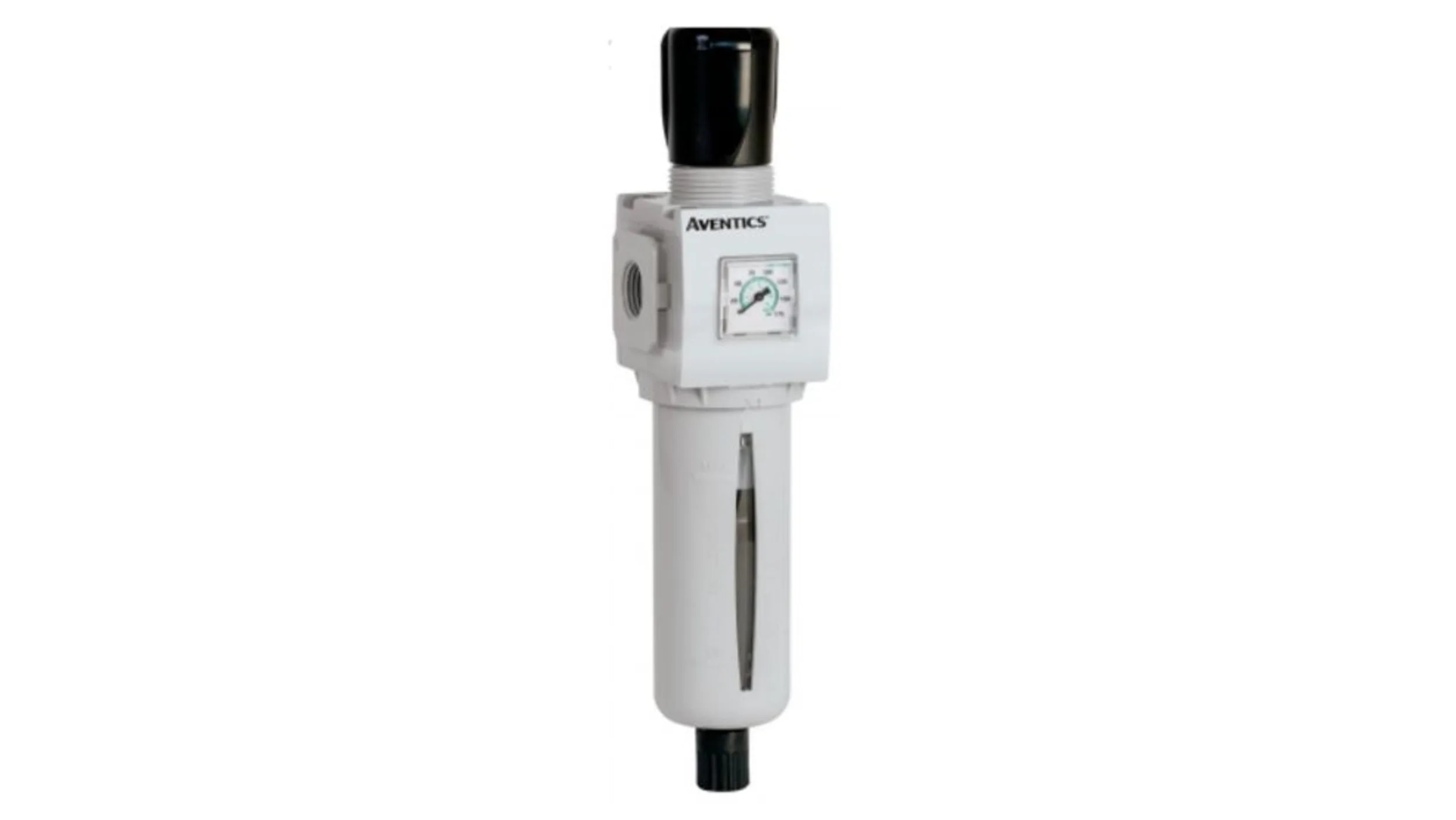

Filter Regulator ASCO Serie 651 - G1/4" - 25 µm - 0,5 to 10 bar - Semi-auto drain - Q:2360l/min

Name: Filter Regulator ASCO Serie 651 - G1/4" - 25 µm - 0,5 to 10 bar - Semi-auto drain - Q:2360l/min
Brand: Asco
SKU: G651APJP2GA00HN
Price: 86.15 EUR
Availability: InStock

Reference : G651APJP2GA00HN

Catalog Price :

€86.15

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	6
Stock Belgium (Barchon)	5
Stock Belgium (Chaineux)	-
Manufacturer stock

Supplier series	651
Specifications	Particulate
Body material	Aluminum
Piston seal material	NBR
Tank material	Polycarbonate
Filtration	25 µm
Diameter of connection	1/4"
Max flow at upstream pressure	10 bar
Max flow (ANR)	2360 l/min
Regulation pressure	0,5 to 10 bar
Max input pressure at 23°C	16 bar
Set pressure	6,3 bar
?P load loss	1 bar
Fluid working Temp	(-)20°C to (+)50°C
Compatibility - fluids	Air or neutral gas
Customs duty number	8481-1005
Gross weight (kg)	0,385
Eclass	27290000
Country of origin	FR
UNSPSC Code	27131700

Description
Documents

PARTICULATE FILTER REGULATOR G1/4 WITH 25µ FILTER ELEMENT, POLYCARBONATE BOWL WITH PROTECTOR , WITH FLAT GAUGE, SEMI-AUTOMATIC DRAIN, REGULATION ZONE 0,5-10 BAR
