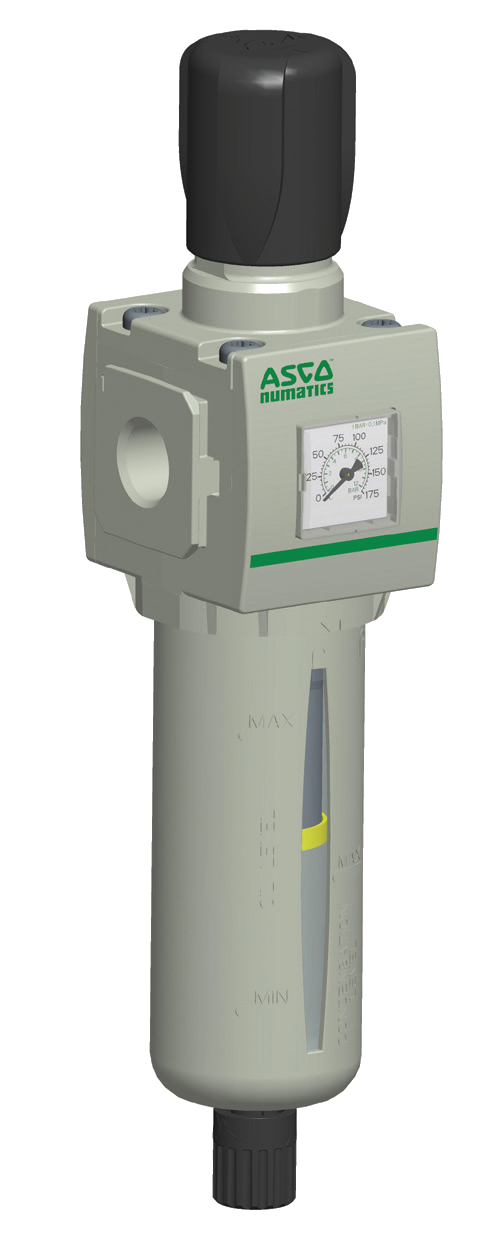

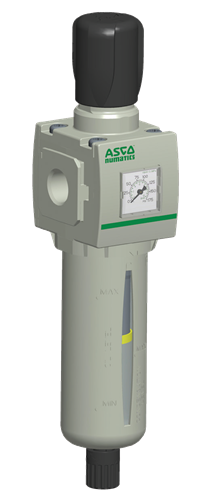

Filter Regulator ASCO Serie 652 - G3/8" - 25 µm - 0,5 to 10 bar - Semi-auto drain - Q:5420l/min

Name: Filter Regulator ASCO Serie 652 - G3/8" - 25 µm - 0,5 to 10 bar - Semi-auto drain - Q:5420l/min
Brand: Asco
SKU: G652APJP3GA00HN
Price: 107.08 EUR
Availability: OutOfStock

Reference : G652APJP3GA00HN

Catalog Price :

€107.08

Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	-
Manufacturer stock	-

Usual lead time :
11-15 working days

Supplier series	652
Specifications	Particulate
Body material	Aluminum
Piston seal material	NBR
Tank material	Polycarbonate
Filtration	25 µm
Diameter of connection	3/8"
Max flow at upstream pressure	10 bar
Max flow (ANR)	5420 l/min
Regulation pressure	0,5 to 10 bar
Max input pressure at 23°C	16 bar
Set pressure	6,3 bar
?P load loss	1 bar
Fluid working Temp	(-)20°C to (+)50°C
Compatibility - fluids	Air or neutral gas
Customs duty number	8481-1005
Gross weight (kg)	0,546
Eclass	27290000
Country of origin	FR
UNSPSC Code	27131700

Description
Documents

Particulate Filter/Regulator 652 Series, Port Size G3/8, 25 Micron Filter Element, Polycarbonate Bowl with protector, Integrated ASCO 652 series Filter-Regulator:
- Connection Ø: G3/8"
- With semi-automatic purge
- Filtration: 25µm
- For a regulation pressure of 0.5 to 10 bar
- Automatic decompression
- Max. inlet pressure : 16 bar
- Ambient temperature: -20°C to +50°C
- Aluminum body
- Polycarbonate tank
- NBR sealing
- Filter element in sintered polyethylene
- With pressure gauge included (M699AG438047001)
- Max flow rate (ANR) at upstream pressure of 10 bar, at a set pressure of 6.3 bar and delta P: 1bar: 5420l/min
- For compressed air or neutral gases
