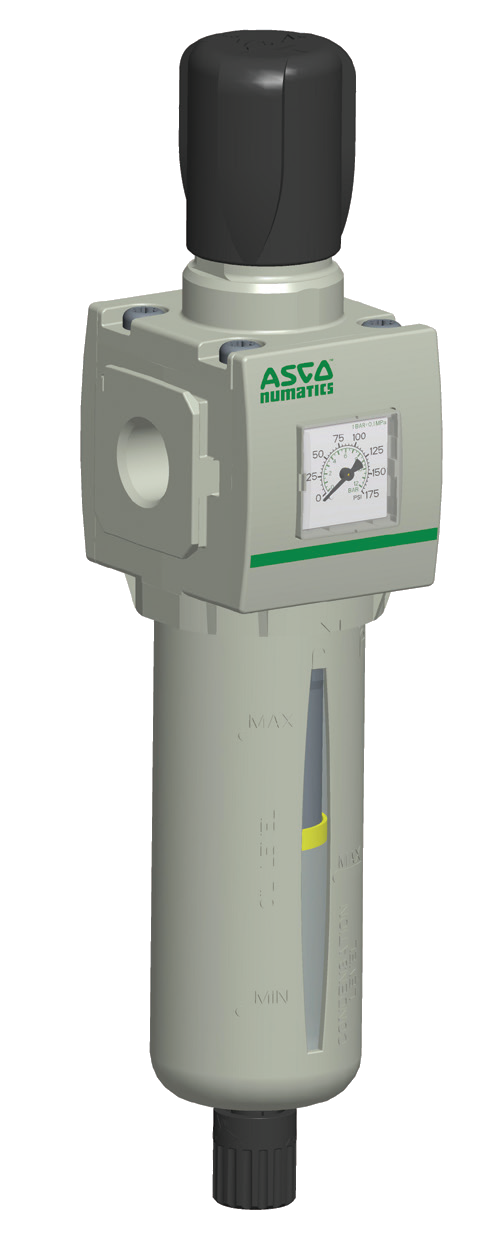

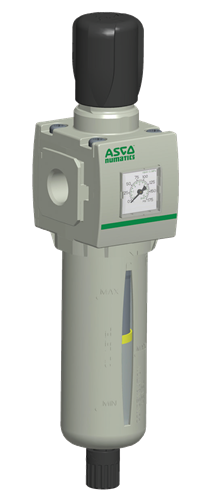

Filter Regulator ASCO Serie 653 - G1" - 5 µm - 0,5 to 10 bar - Semi-auto drain - Q:9000l/min

Reference : G653APBP6GA00HN

Catalog Price :

218.44
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

Quantity and short lead time
to be confirmed on request
Manufacturer stock Quantity and short lead time
to be confirmed on request
Usual lead time :
11-15 working days
Supplier series 653
Specifications Particulate
Body material Aluminum
Piston seal material NBR
Tank material Polycarbonate
Filtration 5 µm
Diameter of connection 1"
Max flow at upstream pressure 10 bar
Max flow (ANR) 9000 l/min
Regulation pressure 0,5 to 10 bar
Max input pressure at 23°C 16 bar
Set pressure 6,3 bar
?P load loss 1 bar
Fluid working Temp (-)20°C to (+)50°C
Compatibility - fluids Air or neutral gas
Customs duty number 8481-0590
Gross weight (kg) 0
Eclass 27290000
Country of origin PL
UNSPSC Code 27131700
