Reference : 9031201B
Catalog Price :
€20.49
Tax excluded 21.00 %
| Specifications | In angle bidirectional |
| Body material | Nickel Brass |
| Connection ends | Threaded Male - Push-in |
| Diameter of connection | M5 |
| Tube diameter | 4 mm |
| Operating pressure | 0 to 10 bar |
| Fluid working Temp | (-)10°C to (+)70°C |
| Compatibility - fluids | Compressed air |
| Customs duty number | 7412-2000 |
| Gross weight (kg) | 0,013504 |
| Eclass | 27290000 |
| Country of origin | IT |
| UNSPSC Code | 27131700 |

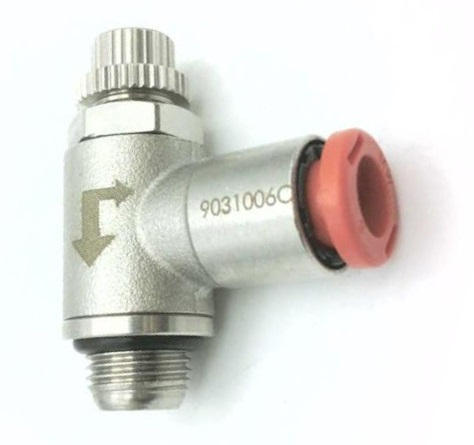

METAL WORK square flow regulator:
- Bidirectional
- Nickel-plated brass body
- Tube diameter: 4 mm
- Connection diameter: M5
- Fluid operating temperature: (-)10°C to (+)70°C
- Operating pressure: 0 to 10 bar
- Bidirectional
- Nickel-plated brass body
- Tube diameter: 4 mm
- Connection diameter: M5
- Fluid operating temperature: (-)10°C to (+)70°C
- Operating pressure: 0 to 10 bar
