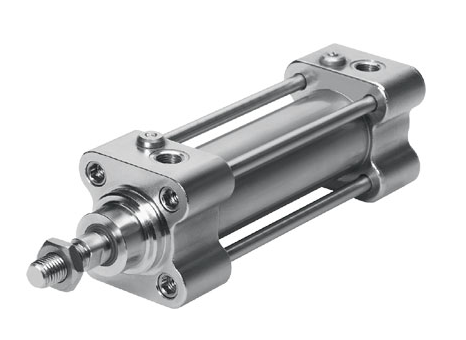

Piston rod cylinder S.S. ISO 15552 - Ø100 - Stroke: 700 - 10 bar - Double acting - Piston rod: S.S.

Reference : CYLA.14.100.0700

Brand reference : 160889

Price upon request Contact us

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	-
Manufacturer stock	-

Usual lead time :
6-10 working days

Supplier series	CRDNG
Standard	ISO 15552
Diameter	100 mm
Stroke	700
Specifications	Double acting
Body material	Stainless Steel
Rod material	Stainless Steel
Piston seal material	Polyurethane
Operating pressure	10 bar
Fluid working Temp	(-)20°C to (+)80°C
Gross weight (kg)	0
Eclass	27290000
UNSPSC Code	27131700

Documents

507106-vérins normalisés iso 15552.pdf

Manufacturer data sheet
