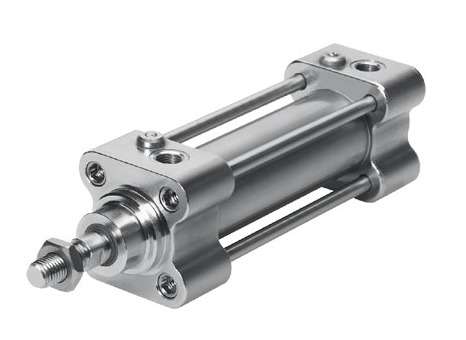

Piston rod cylinder S.S. ISO 15552 - Ø32 - Stroke: 100 - 10 bar - Double acting - Piston rod: S.S.

Reference : CYLA.14.032.0100

Brand reference : 160884

Catalog Price :

€473.86

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
4 weeks

Supplier series	CRDNG
Standard	ISO 15552
Diameter	32 mm
Stroke	100
Specifications	Double acting
Body material	Stainless Steel
Rod material	Stainless Steel
Seal material	Polyurethane
Operating pressure	10 bar
Fluid working Temp	(-)20°C to (+)80°C
Gross weight (kg)	0
Eclass	27290000
UNSPSC Code	27131700

Documents

506962-vérins normalisés iso 15552.pdf

Manufacturer data sheet
