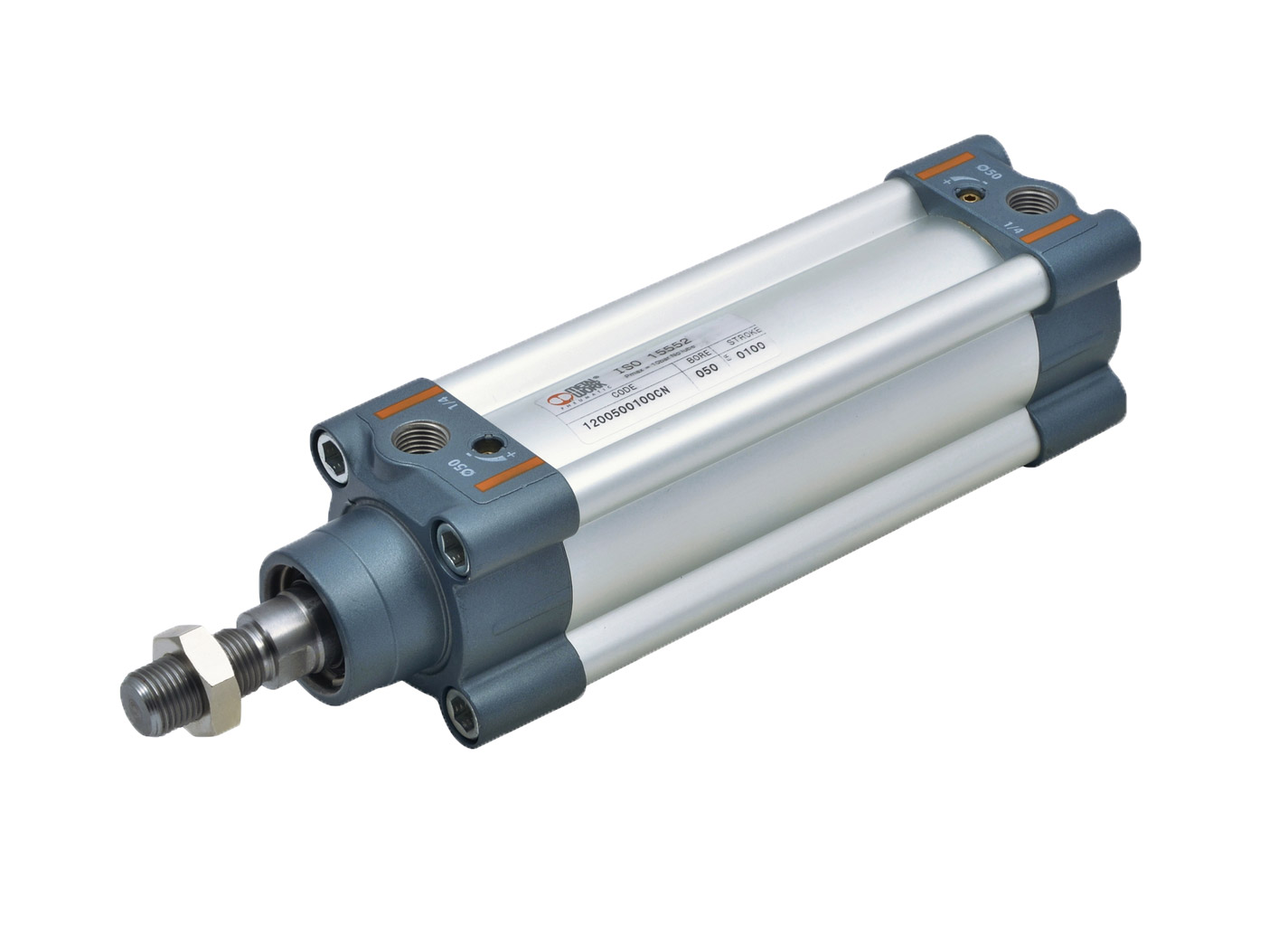

Non contractual picture
Associated products Associated categories

Piston rod cylinder S.S.304 ISO15552 - Ø100 - Stke: 750 - 10 bar - Double acting - Piston rod: S.S.

Reference : CYLA.07.100.0750

Brand reference : W1840A10750

Price upon request Contact us
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
4 weeks
Supplier series W184
Standard ISO 15552
Diameter 100 mm
Stroke 750
Specifications Double acting
Body material 304 Stainless Steel
Rod material Stainless Steel
Seal material Polyurethane
Operating pressure 10 bar
Fluid working Temp (-)10°C to (+)80°C
Gross weight (kg) 0
Eclass 27290000
UNSPSC Code 27131700

Associated products

P499440617MN001

Clamp sensor for T for rods cylinders d = 25 to 100, m8

Stock : 0
Asco
€12.28
AB7100X

Counter Hinge - AB7 - Stainless Steel - For cylinders Ø 100 mm

Stock : 0
IMI Norgren
€610.82
MP2100X

Female Hinge - MP2 - Stainless Steel - Ø 100 mm

Stock : 0
Metal Work
€399.10
AP280100X

Fork - AP2 - Stainless Steel - Ø 80/100 mm - M20x1,5

Stock : 0
Aventics (ex Bosch Rexroth)
€240.70
MF1100X

Front/Rear Flange - MF1 - Stainless steel - Ø 100 mm

Stock : 0
Metal Work
Price upon request
MS1100X

Low feet - MS1 - Stainless Steel - Ø 100 mm

Stock : 0
Asco
Price upon request
CYLX.01.004

Magnetic position detector, 2-wire with integrated male connector M8, 3-pin

Stock : 0
Asco
€43.48
CYLX.01.003

Magnetic position detector, 2-wire with male connector M8, 3-pin and PU cable 0,3m

Stock > 14
Asco
€37.82
CYLX.01.007

Magnetic sensor for T groove version - 10 to 30 VDC - PUR cable 5m 3 wires PNP NO

Stock > 2
Asco
€67.08
CYLX.01.008

Magneto Resistive position detector, for cylinders with T groove, 3 wires, 10 to 30 VDC

Stock : 0
Asco
€74.67
CYLX.01.009

Magneto Resistive position detector, for cylinders with T groove, 3 wires, 10 to 30 VDC

Stock > 8
Asco
€64.31
MP4100X

Male Hinge - MP4 - Stainless Steel - Ø 100 mm

Stock : 0
Metal Work
€413.09
P494A8129200A00

Mounting flange for "t" detectors for cylinders with tie rods d=100 or profiled barrel ø80/100/125

Stock > 8
Asco
€15.38
AK80100X

Piston rod swivel - AK1 - Stainless Steel - Ø 80/100 mm - M20x1,5

Stock : 0
Festo
€171.47
P494A0021100A00

Reed switch detector for T slot 5 to 120V AC/DC - PUR cable 5meters 2 wires

Stock > 12
Asco
€40.59
N280100X

Rod nut - N2 - Stainless Steel - Ø 80/100 mm - M20x1,5

Stock : 0
Metal Work
€4.94
AP680100X

Swivel head - AP2 - Stainless Steel - For cylinders Ø 80/100 mm - M20 x1,5

Stock : 0
IMI Norgren
€193.12
ZS 3200

T-groove (5mm) cylinder switch, 2-wire Reed sensor - NO - 10-230VAC / 10-170VDC - 150mA/10W - 3m

Stock > 2
€48.00
