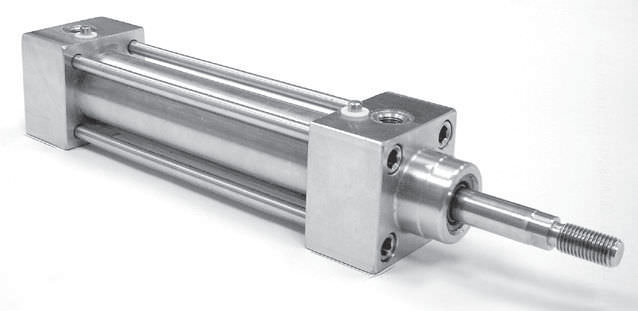

Piston rod cylinder S.S.304 ISO15552 - Ø80 - Stroke: 25 - 10 bar - Double acting - Piston rod: S.S.

Reference : CYLA.08.080.0025

Brand reference : SG080/002500000

Price upon request Contact us

Stock Luxembourg (Troisvierges)	-
Stock Belgium (Barchon)	-
Stock Belgium (Chaineux)	-
Manufacturer stock	-

Usual lead time :
11-15 working days

Supplier series	S
Standard	ISO 15552
Diameter	80 mm
Stroke	25
Specifications	Double acting
Body material	304 Stainless Steel
Rod material	Stainless Steel
Piston seal material	Polyurethane and NBR
Operating pressure	10 bar
Fluid working Temp	(-)20°C to (+)80°C
Gross weight (kg)	0
Eclass	27290000
UNSPSC Code	27131700

Documents

8587-vérins normalisés iso 15552.pdf

Manufacturer data sheet
