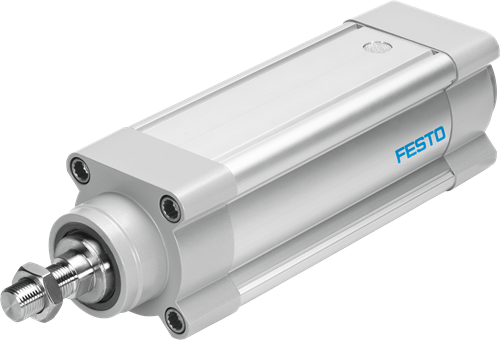

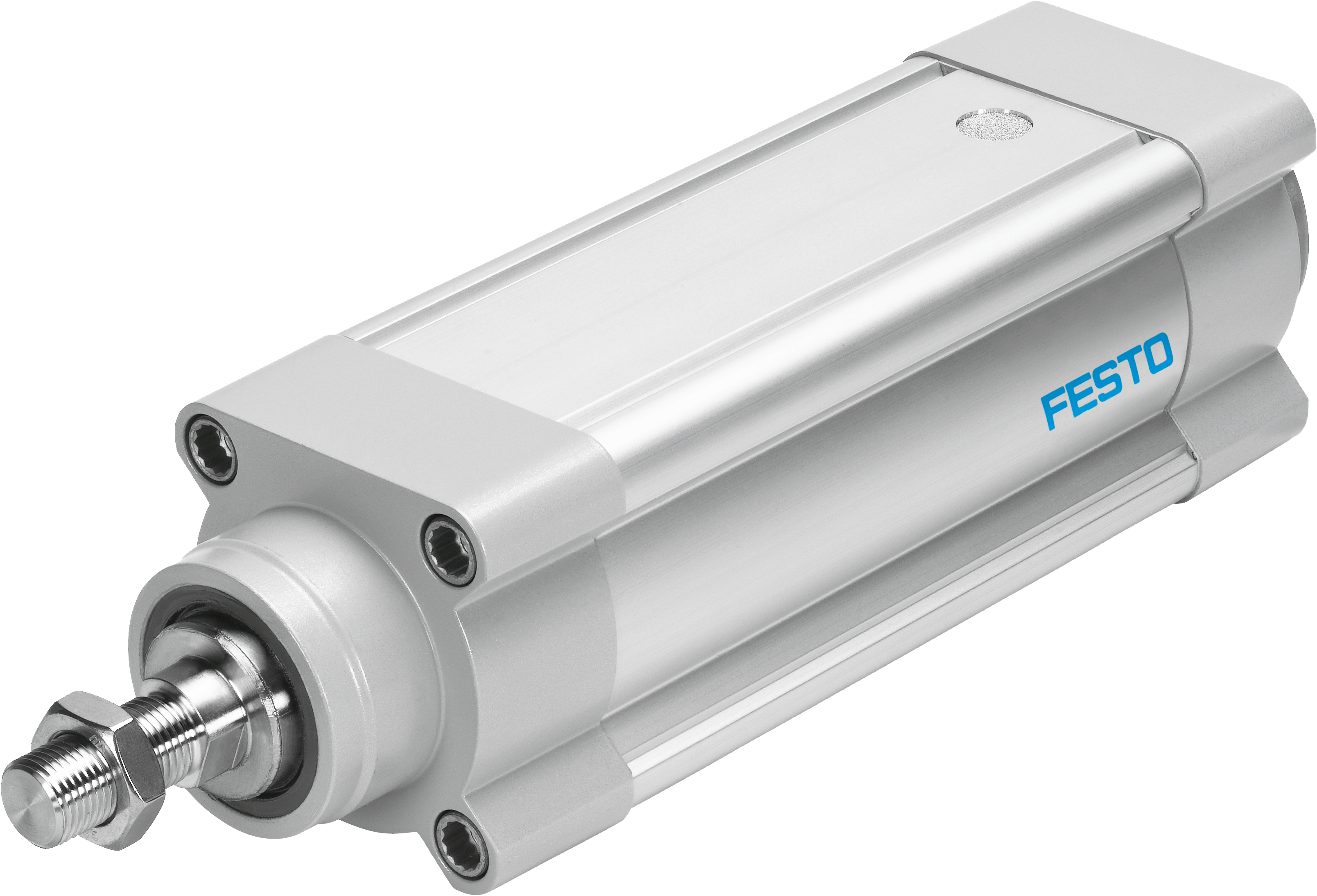

Non contractual picture

Profile barrel cylinder alum. ISO15552 - Ø100 - Stroke: 650 - 10 bar - Double acting - Steel Rod

Reference : CYLA.12.100.0650

Brand reference : 1463598

Price upon request Contact us
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
6-10 working days
Supplier series DSBC
Standard ISO 15552
Diameter 100 mm
Stroke 650
Specifications Double acting
Body material Anodized aluminum
Rod material Stainless Steel
Seal material Polyurethane
Operating pressure 12 bar
Fluid working Temp (-)20°C to (+)80°C
Gross weight (kg) 0
Eclass 27290000
UNSPSC Code 27131700

Associated products

AB7100

Counter Hinge - AB7 - Aluminum - For cylinders Ø100

Stock > 2
Aventics (ex Bosch Rexroth)
€53.17
MP2100

Female Hinge - MP2 - Stainless Steel - for cylinders Ø 100 mm - axe Ø20mm

Stock > 2
Aventics (ex Bosch Rexroth)
€55.82
LOSANGEM3

Fix plate - M3 - Steel - For cylinders Ø 32 to Ø 125

Stock : 0
Metal Work
€5.58
LOSANGEM4

Fix plate - M4 - Steel - For cylinders Ø 32 to Ø 125

Stock > 8
Metal Work
€5.58
AP280100

Fork - AP2 - Steel - Ø 80/100 mm - M20x1,5

Stock > 7
Metal Work
€26.56
MF1100

Front/Rear Flange - MF1 - Steel - Ø 100 mm

Stock : 0
Metal Work
€30.55
MS1100

Low feet - MS1 - Steel - Ø 100 mm

Stock > 3
Aventics (ex Bosch Rexroth)
€44.09
P494A0022300A00

Magnetic position detector for t groove profiletube, 10 to 30VDC - PNP - with 2 m PUR cable

Stock > 8
Asco
€58.33
CYLX.01.004

Magnetic position detector, 2-wire with integrated male connector M8, 3-pin

Stock : 0
Asco
€43.48
CYLX.01.003

Magnetic position detector, 2-wire with male connector M8, 3-pin and PU cable 0,3m

Stock > 14
Asco
€37.82
CYLX.01.007

Magnetic sensor for T groove version - 10 to 30 VDC - PUR cable 5m 3 wires PNP NO

Stock > 2
Asco
€67.08
CYLX.01.008

Magneto Resistive position detector, for cylinders with T groove, 3 wires, 10 to 30 VDC

Stock : 0
Asco
€74.67
CYLX.01.009

Magneto Resistive position detector, for cylinders with T groove, 3 wires, 10 to 30 VDC

Stock > 8
Asco
€64.31
MP4100

Male Hinge - MP4 - Aluminum - For cylinders Ø 100 mm - axe Ø20mm

Stock > 4
Aventics (ex Bosch Rexroth)
€49.93
DPNC100

Multi position kit - Aluminum alloy - Ø 100 mm

Stock : 0
Festo
€96.30
SS100

Narrow hinge - SS1 - Aluminum alloy - Ø 100 mm

Stock : 0
IMI Norgren
€60.59
AK80100

Piston rod swivel - AK1 - Steel - Ø 80/100 mm - M20x1,5

Stock : 0
IMI Norgren
€80.20
AB6100

Rear clevis - AB6 - Aluminum - For cylinders Ø 100 mm - axe Ø20mm

Stock : 0
Aventics (ex Bosch Rexroth)
€88.33
MP6100

Rear eye - MP6 - Aluminum - For cylinders Ø 100 mm

Stock : 0
Aventics (ex Bosch Rexroth)
€155.76
P494A0021300A00

Reed switch detector for T slot 5 to 120V AC/DC - PUR cable 2meters 2 wires

Stock > 31
Asco
€33.97
P494A0021100A00

Reed switch detector for T slot 5 to 120V AC/DC - PUR cable 5meters 2 wires

Stock > 12
Asco
€40.59
N280100

Rod nut - N2 - Steel - Ø 80/100 mm - M20x1,5

Stock > 2
Metal Work
€1.94
AP680100

Swivel head - AP2 - Steel - For cylinders Ø 80/100 mm - M20 x 1,5

Stock > 4
Aventics (ex Bosch Rexroth)
€82.78
AB5100

Swivel hinge - AB5 - Cast iron - For cylinders Ø 100 mm

Stock : 0
Aventics (ex Bosch Rexroth)
€119.59
ZS 3200

T-groove (5mm) cylinder switch, 2-wire Reed sensor - NO - 10-230VAC / 10-170VDC - 150mA/10W - 3m

Stock > 2
€48.00
