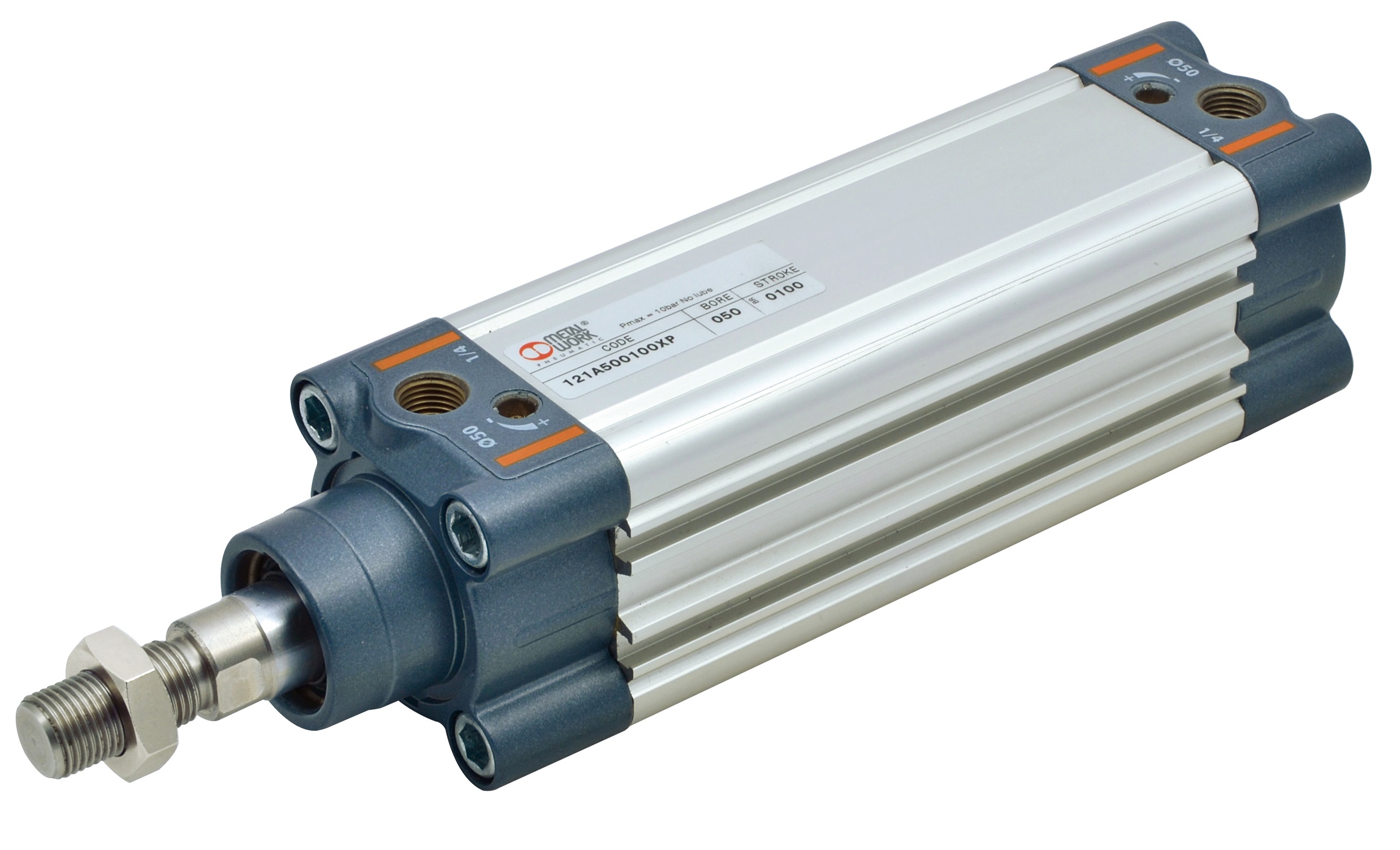

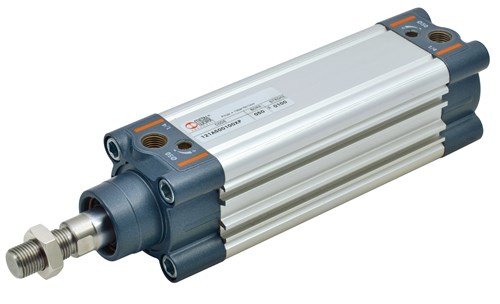

Profile barrel cylinder alum. ISO15552 - Ø40 - Stroke: 250 - 10 bar - Double acting - S.S. Rod

Reference : CYLA.01.040.0250

Brand reference : 121A400250XP

Catalog Price :

€132.19

Tax excluded 21.00 %

Stock Belgique (Liège)	-
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
5 days

Supplier series	121A
Standard	ISO 15552
Diameter	40 mm
Stroke	250
Specifications	Double acting
Body material	Anodized aluminum
Rod material	Stainless Steel
Seal material	Polyurethane
Operating pressure	10 bar
Fluid working Temp	(-)10°C to (+)80°C
Customs duty number	8412-3100
Gross weight (kg)	1,856
Eclass	27290000
Country of origin	IT
UNSPSC Code	27131700

Description
Documents

ISO15552 A CYL 40 X 250 SS/POLY

7380-catalogue_metalwork_vf_1-2_1-97.pdf
