Reference : FISS.004.0414
Brand reference : XVRL04G02
Catalog Price :
€24.40
Tax excluded 21.00 %

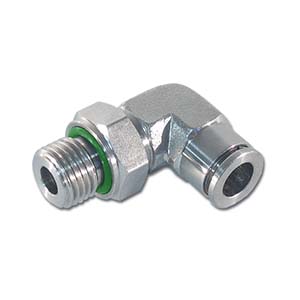

| Specifications | Cylindrical elbow |
| Body material | 316 Stainless Steel |
| Connection ends | Union - Male |
| Diameter of connection | 1/4" |
| Tube external diameter (mm) | 4 mm |
| Operating pressure | (-)0,99 to 20 bar |
| Fluid working Temp | (-)20°C to (+)150°C |
| Compatibility - fluids | For compressed air, water or aggressive fluids |
| Customs duty number | 7307-1990 |
| Gross weight (kg) | 0,041 |
| Eclass | 27290000 |
| Country of origin | IN |
| UNSPSC Code | 27131700 |
