Reference : SO 22421-12-1/4
Catalog Price :
€19.56
Tax excluded 21.00 %

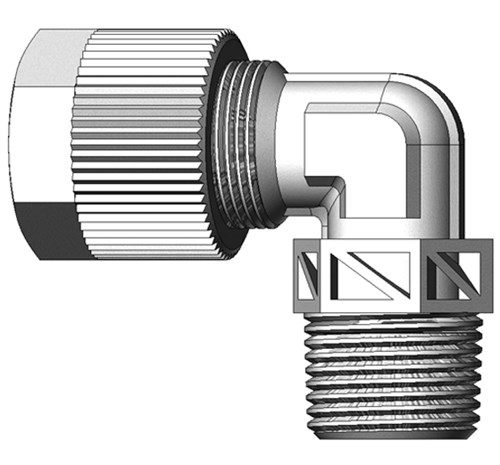

| Specifications | Conical elbow |
| Body material | PVDF |
| Connection ends | Union - Male |
| Diameter of connection | 1/4" |
| Tube external diameter (mm) | 12 mm |
| Operating pressure | (-)0,99 to 10 bar |
| Fluid working Temp | (-)40°C to (+)100°C |
| Compatibility - fluids | For corrosive or non-corrosive environment |
| Customs duty number | 3917-4000 |
| Gross weight (kg) | 0,0152 |
| Eclass | 37060000 |
| Country of origin | CH |
| UNSPSC Code | 40140000 |
