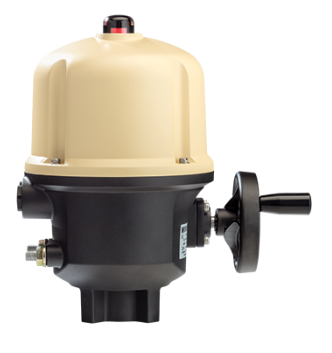

1/4 turn servomotor BERNARD CONTROLS - Range AQ, Serie AQ10 - 100 Nm - 24V DC

Reference : AQ0010DE021PA000E0M

Catalog Price :

1,011.95
Tax excluded 21.00 %

Stock Luxembourg (Troisvierges)

2

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

-
Manufacturer stock -
Body material Aluminum cast iron
Sealing IP68
Fluid working Temp (-)20°C to (+)60°C
Operated Electrically
Operating torque, pressure opening at 6 bar 100 Nm
Adapter plate F05/F07
Output star 17 mm
Voltage 24VDC
Customs duty number 8481-8081
Gross weight (kg) 0
Eclass 27220000
Country of origin FR
UNSPSC Code 31251500
BERNARD CONTROLS waterproof quarter-turn actuator
- AQ range, model AQ10
- Maximum torque 100 Nm
- Pre-wired SWITCH version, on/off Class A
- Operating time for 90° : 21 seconds
- Flange connection ISO 5211: F05/F07
- 17mm x 17mm female drive square at 45°.
- Supply voltages: 24V DC
- Thermal protection
- Electrical power: 0.03 kW
- Rated current 2.5 A
- Starting current: 8 A
- Emergency manual operation via self-releasing handwheel
- Cast aluminium housing
- Protection class IP68 (2m/24h) / NEMA 4X
- Operating ambient temperature range -20 to +60°C
- Cable entry 2x M20
- 2 SPDT contacts (Open and Closed) + 2 potential free auxiliary contacts 250V AC-5A / 48V DC-2.5A (resistive load)
- 3D mechanical position indicator
