Reference : 2025V 30 08
Catalog gross price :
€201.78
Tax excluded 21.00 %
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 2,547 |
| Country of origin | ES |
| Eclass | 37020000 |
| UNSPSC Code | 40140000 |

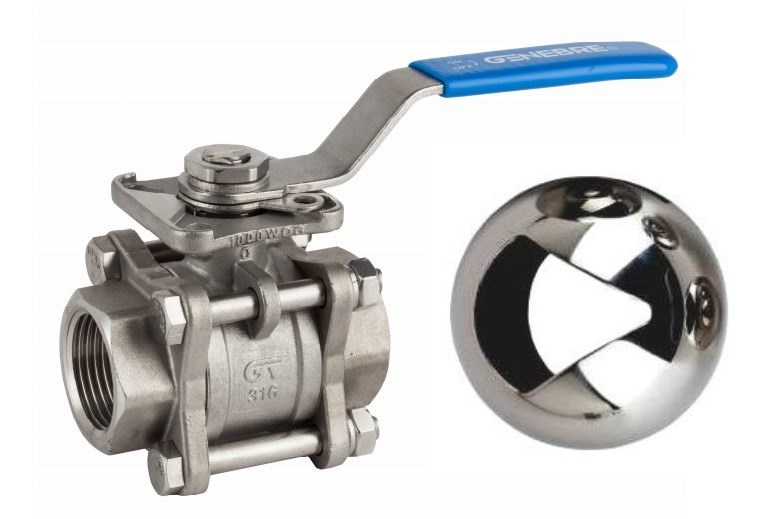

Manually-operated stainless steel 3-piece ball control valve
- 2-way operation
- DN 40
- G 1"1/2 threaded connection to EN 10226-1
- Reduced V-shaped passage, 30° angle
- Flow coefficient Kv 20,1,65 m³/h
- Maximum operating pressure 63 bar
- Body in stainless steel 1.4408 (CF8M)
- 1.4408 stainless steel V-port ball
- 15% glass-fibre reinforced PTFE seats
- Stem seal in FKM (Viton)
- Wear compensation system with Belleville washers
- Fluid temperature range -25°C to +180°C
- Manual operation by padlockable stainless steel lever
- Motorised, direct mounting
- Mounting surface ISO 5211 F05-F07, 45° square 14mmx14mm
