| Customs duty number | 8481-8079 |
| Gross weight (kg) | 2,22 |
| Country of origin | DE |
| Eclass | 37010000 |
| UNSPSC Code | 40140000 |

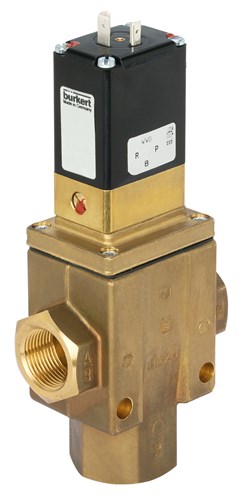

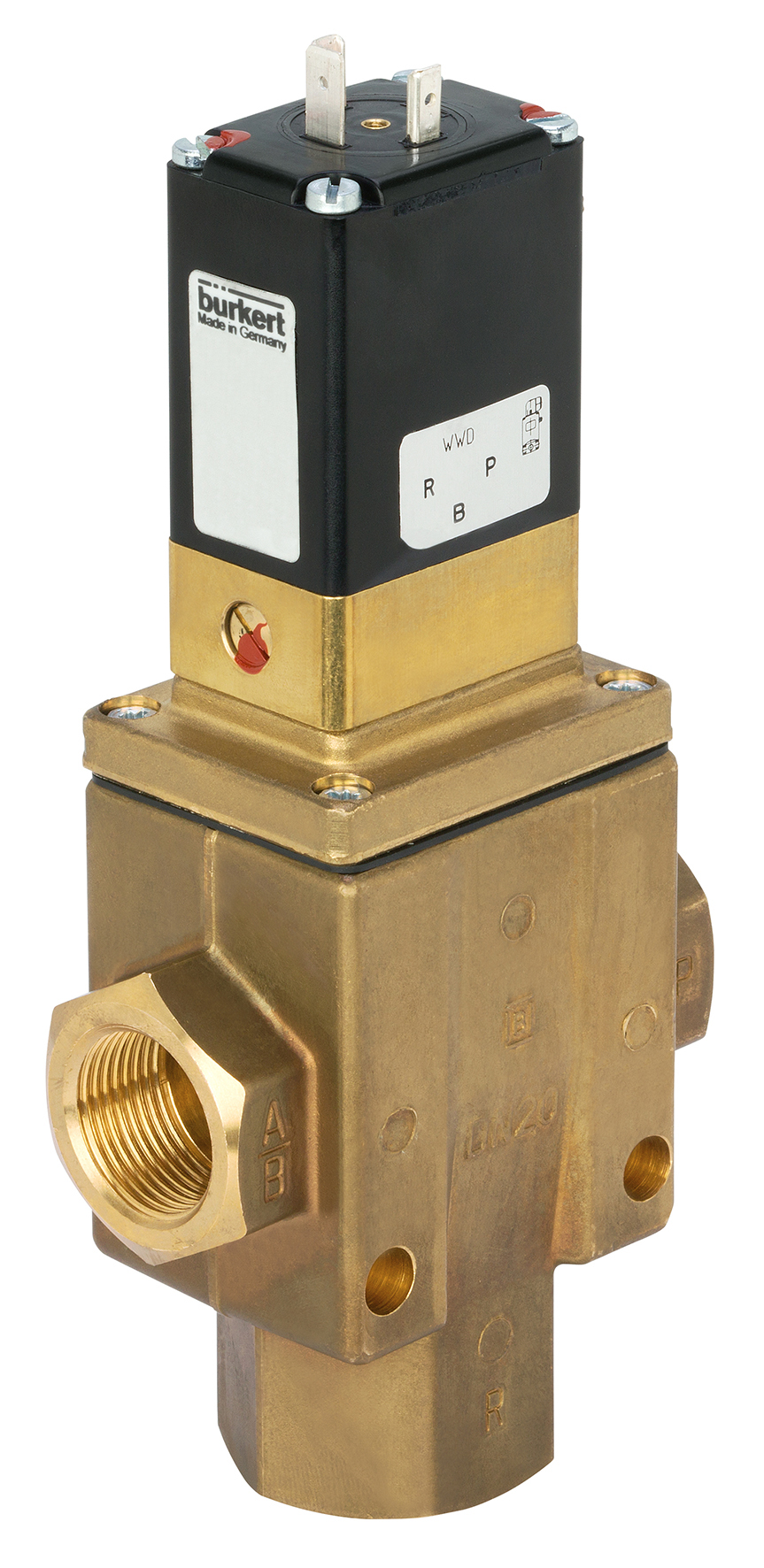

6430-D20,0BBMSGM85-0-024/DC-08 - 3/2-way-solenoid valve; servo-piston
- 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/ OUT), exhaust port 3 (R/NC) closed
- 20,00 mm (3/4 inch)
- -1,00 bar - 3,00 bar
- Brass
- Inner thread - G3/4
- 24,00 V - 24,00 V
- NBR (Nitrile rubber)
- 0,00 °C - 80,00 °C
- Valve complete
- 3/2 - D - normally open - inlet port 1 (P/NO) connected with outlet port 2 (B/ OUT), exhaust port 3 (R/NC) closed
- 20,00 mm (3/4 inch)
- -1,00 bar - 3,00 bar
- Brass
- Inner thread - G3/4
- 24,00 V - 24,00 V
- NBR (Nitrile rubber)
- 0,00 °C - 80,00 °C
- Valve complete
