Actuator - Anodized aluminum - NBR - F04 - #14 - 6 springs - PN8 - Single acting - 100°C

Name: Actuator - Anodized aluminum - NBR - F04 - #14 - 6 springs - PN8 - Single acting - 100°C
Brand: Actreg
SKU: ASR0020/06/0004/14
Price: 172.59 EUR
Availability: InStock

Actreg

Reference : ASR0020/06/0004/14

Brand reference : ASR0020F04S06FC

Catalog gross price :

€172.59

Tax excluded 21.00 %

Stock Belgique (Liège)	3
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	1
Stock usine	Quantity and short lead time to be confirmed on request

Body material	Anodized aluminum
Sealing	NBR
PN	8
Fluid working Temp	(-)30°C to (+)100°C
Operated	Simple effet - NF
Operating torque, pressure opening at 6 bar	14 Nm
Operating torque, spring closure	7 Nm
Adapter plate	F04
Output star	14 mm
Customs duty number	8412-3900
Gross weight (kg)	1,54
Eclass	27220000
Country of origin	ES
UNSPSC Code	31251500

Description
Documents

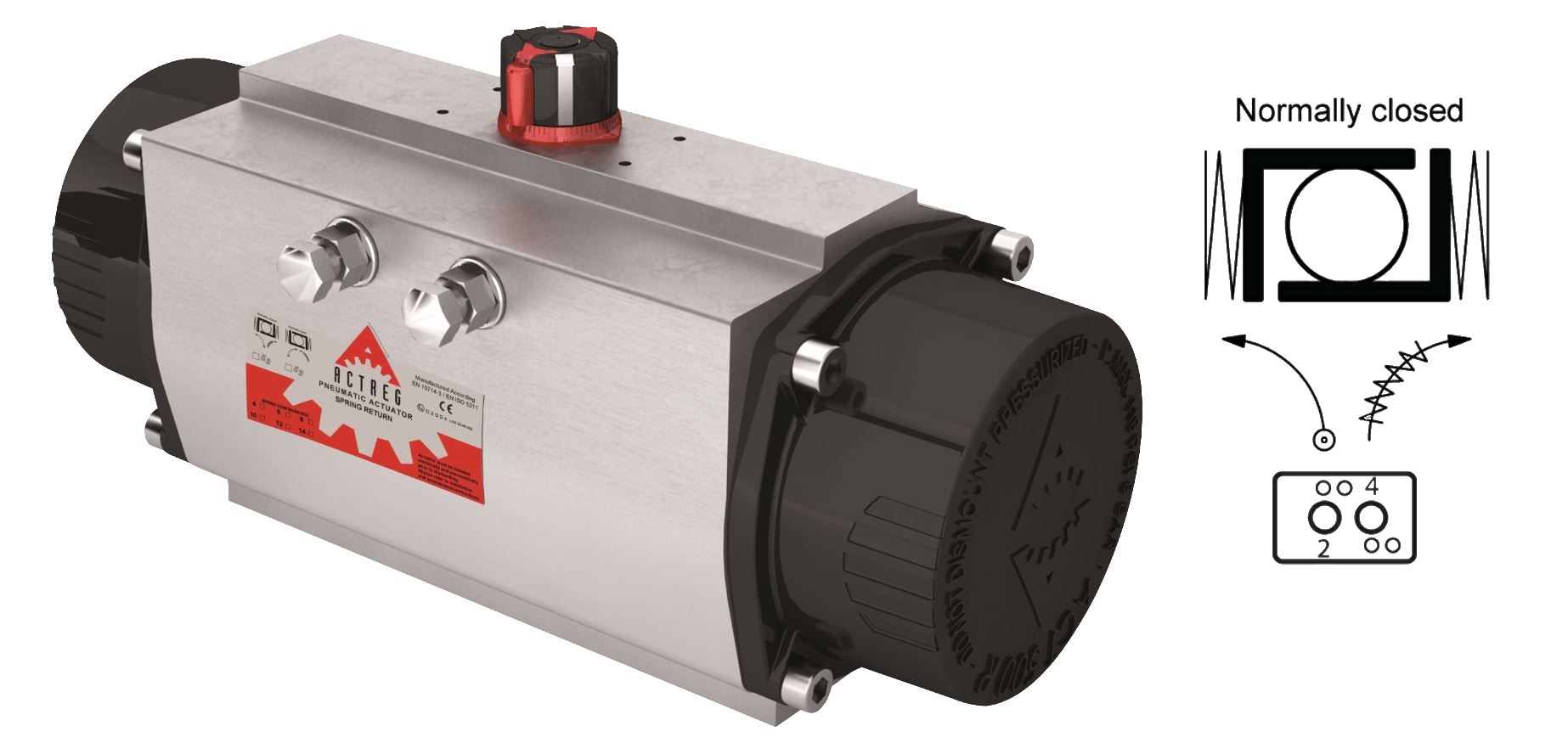

ACTREG quarter-turn pneumatic actuator TYPE ASR 20
- Single acting
- 6 springs
- Opening torque by pressure at 6 bar : 14 / 10 Nm
- Closing torque by spring : 7 / 11 Nm
- Installation drawing F04
- Output star 14mm
- Actuating angle 90
- Double stop adjustable +/- 5°
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Direction of rotation by springs: clockwise (for valve normally closed at rest)
