Reference : ASR1200/14/1014/36
Brand reference : ASR12001014CN
Catalog Price :
€1,425.52
Tax excluded 21.00 %
| Body material | Anodized aluminum |
| Sealing | NBR |
| PN | 8 |
| Fluid working Temp | (-)30°C to (+)100°C |
| Operated | Air operated NC |
| Specifications | 1/4 turn - Single acting |
| Operating torque, pressure opening at 6 bar | 698 Nm |
| Operating torque, spring closure | 400 Nm |
| Adapter plate | F10/F14 |
| Output star | 36 mm |
| Customs duty number | 8412-3900 |
| Gross weight (kg) | 34,3 |
| Eclass | 27220000 |
| Country of origin | ES |
| UNSPSC Code | 31251500 |

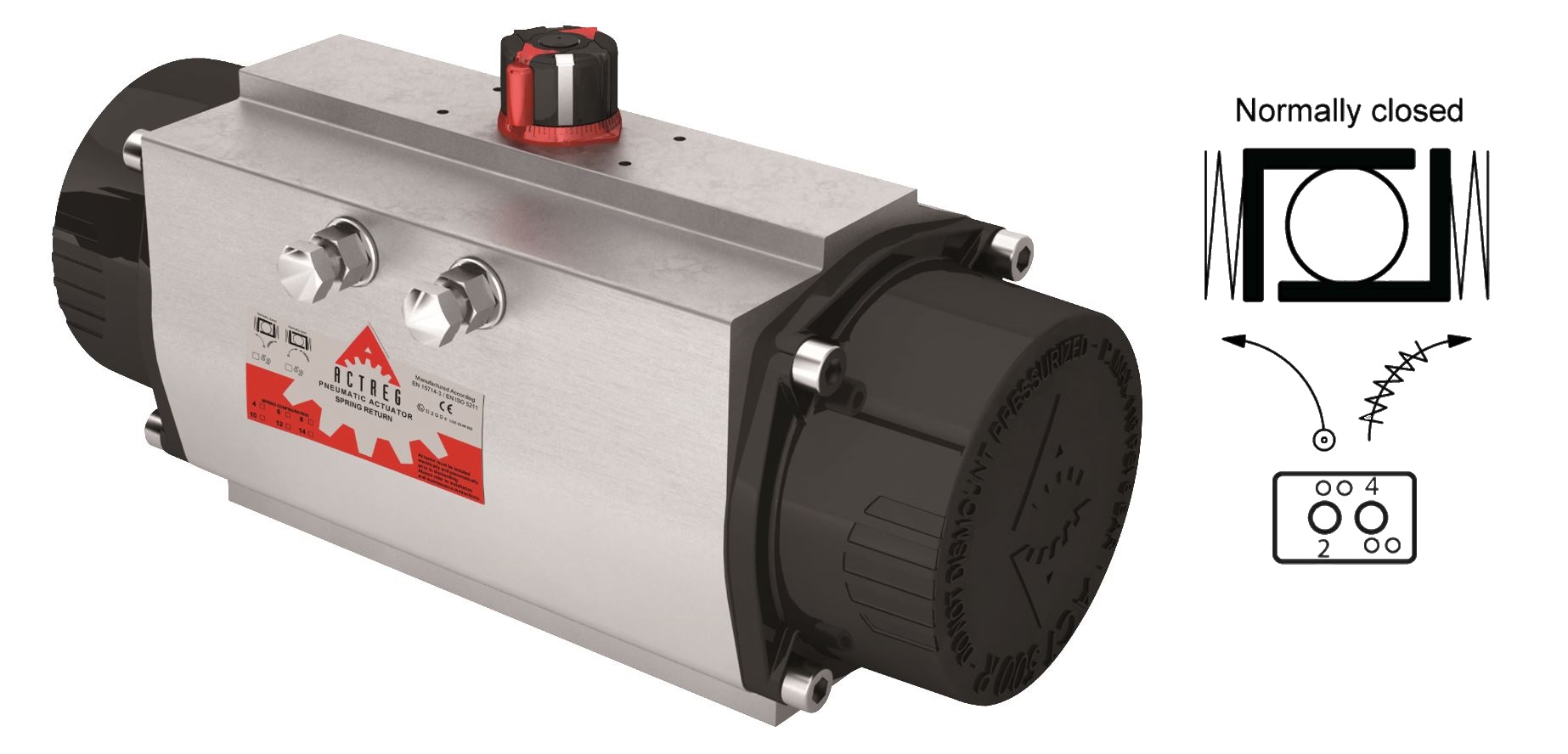

ACTREG quarter-turn pneumatic actuator TYPE ASR 1200
- Single acting
- 14 springs
- Opening torque by pressure at 6 bar : 698 / 502 Nm
- Closing torque by spring : 400 / 631 Nm
- Installation drawing F10-F14
- Output star 36mm
- Actuating angle 90°
- Double stop adjustable +/- 5°.
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Direction of rotation by springs: clockwise (for valve normally closed at rest)
- Single acting
- 14 springs
- Opening torque by pressure at 6 bar : 698 / 502 Nm
- Closing torque by spring : 400 / 631 Nm
- Installation drawing F10-F14
- Output star 36mm
- Actuating angle 90°
- Double stop adjustable +/- 5°.
- Anodised aluminium body / epoxy coated aluminium flanges
- Standard seals in NBR
- Operating temperature range -30° to +100°C
- Maximum operating pressure 8 bar
- Compressed air supply connection G1/4" or according to NAMUR VDI/VDE 3845
- Multifunctional position indicator
- ATEX EEx II 2G/D for zone 1, 2, 21 & 22
- Direction of rotation by springs: clockwise (for valve normally closed at rest)
