Reference : SCG353A047.24/DC
Catalog Price :
€268.37
Tax excluded 21.00 %
| Supplier series | 353 |
| Body material | Aluminum |
| Sealing | NBR |
| Type of connection | Threaded |
| Diameter of connection | 1''1/2 |
| Full voltage code | 24/DC |
| Flow at 6 bar (m³ / h) | 43 |
| Min differential pressure | 0.3 |
| Max differential pressure | 8.5 |
| Fluid working Temp | (-20°C to 85°C) |
| Ambient Temp | (-20°C to 85°C) |
| Compatibility - fluids | Air |
| Dimensions (mm) | 71x30 |
| Spare parts kit | C113827 |
| Associated connector | T30 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 1,444 |
| Eclass | 27220000 |
| Country of origin | FR |
| UNSPSC Code | 31251500 |

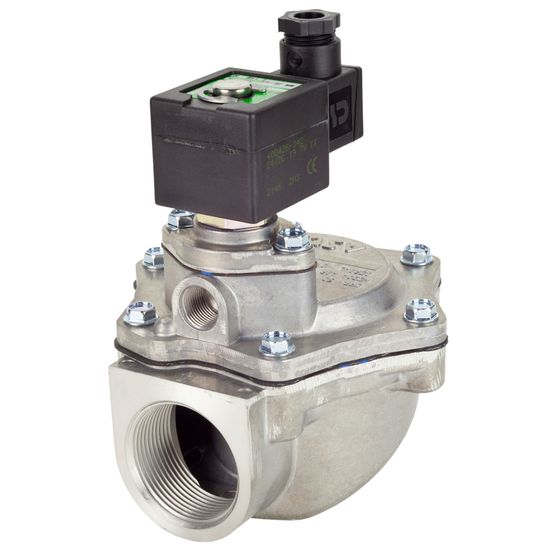

PILOT OPERATED SOLENOID VALVE-2/2 NC-1-1/2" (DN40)-ORIFICE: 52,0-ALUMINIUM-RESILIENT: CR-19,7 W-COIL CLASS: F-IP65
