| Supplier series | 210 |
| Specifications | NC (Normally closed) |
| Body material | Stainless Steel |
| Sealing | NBR |
| Diameter of connection | 1/2" |
| Full voltage code | 24/DC |
| Min differential pressure | 0 |
| Max differential pressure | 9 |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 3.4 |
| Fluid working Temp | (-20°C to 85°C) |
| Ambient Temp | (-20°C to 75°C) |
| Compatibility - fluids | Air, neutral gas, water, oil |
| Dimensions (mm) | 71 |
| Type of current | Direct (=) - DC |
| Voltage | 24V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 1,12596 |
| Eclass | 27220000 |
| Country of origin | GB |
| UNSPSC Code | 31251500 |

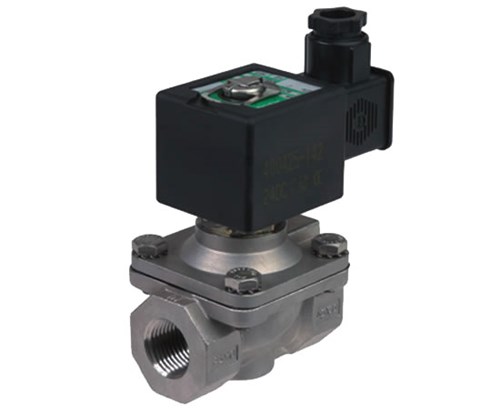

PILOT OPERATED SOLENOID VALVE-2/2 NC-1/2" (DN15)-ORIFICE: 16,0-STAINLESS STEEL-RESILIENT: NBR-16,7 W-COIL CLASS: F-IP65
