Reference : SCE220-027.230/50
Catalog Price :
€988.43
Tax excluded 21.00 %
| Supplier series | 220 |
| Specifications | NC (Normally closed) |
| Body material | Brass |
| Sealing | PTFE |
| Diameter of connection | 1"1/4 |
| Full voltage code | 230/50 |
| Min differential pressure | 0.35 |
| Max differential pressure | 10 |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 12.8 |
| Fluid working Temp | (-20°C to 184°C) |
| Ambient Temp | (-20°C to 40°C) |
| Compatibility - fluids | Steam and hot water |
| Dimensions (mm) | 93 |
| Type of current | Alternating (~) - AC |
| Voltage | 230V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 2,20863 |
| Eclass | 27220000 |
| Country of origin | NL |
| UNSPSC Code | 31251500 |

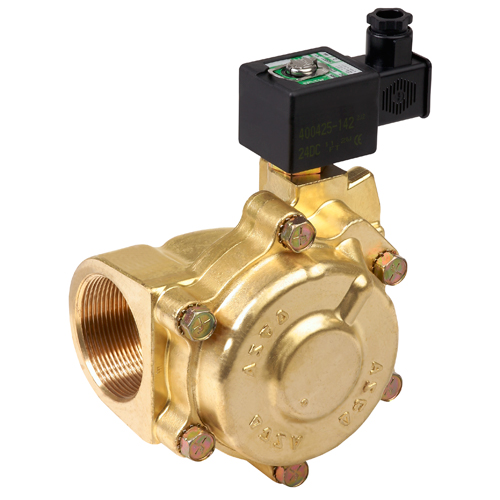

PILOT OPERATED SOLENOID VALVE-2/2 NC-1-1/4" (DN32)-ORIFICE: 29,0-BRASS-RESILIENT: PTFE-10,5 W-COIL CLASS: H-IP65
