Reference : E220K411S1T00H8
Catalog Price :
€727.25
Tax excluded 21.00 %
| Supplier series | 220 |
| Specifications | NC (Normally closed) |
| Body material | Brass |
| Sealing | PTFE |
| Diameter of connection | 1'' |
| Full voltage code | 230/50 |
| Min differential pressure | 0.3 |
| Max differential pressure | 9 (steam) / 10 (water) |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 10 |
| Fluid working Temp | (-20°C to 177°C) |
| Ambient Temp | (-20°C to 40°C) |
| Compatibility - fluids | Steam and hot water |
| Dimensions (mm) | 95 |
| Type of current | Alternating (~) - AC |
| Voltage | 230V |
| Customs duty number | 8481-8087 |
| Gross weight (kg) | 1,45 |
| Eclass | 27220000 |
| Country of origin | PL |
| UNSPSC Code | 31251500 |

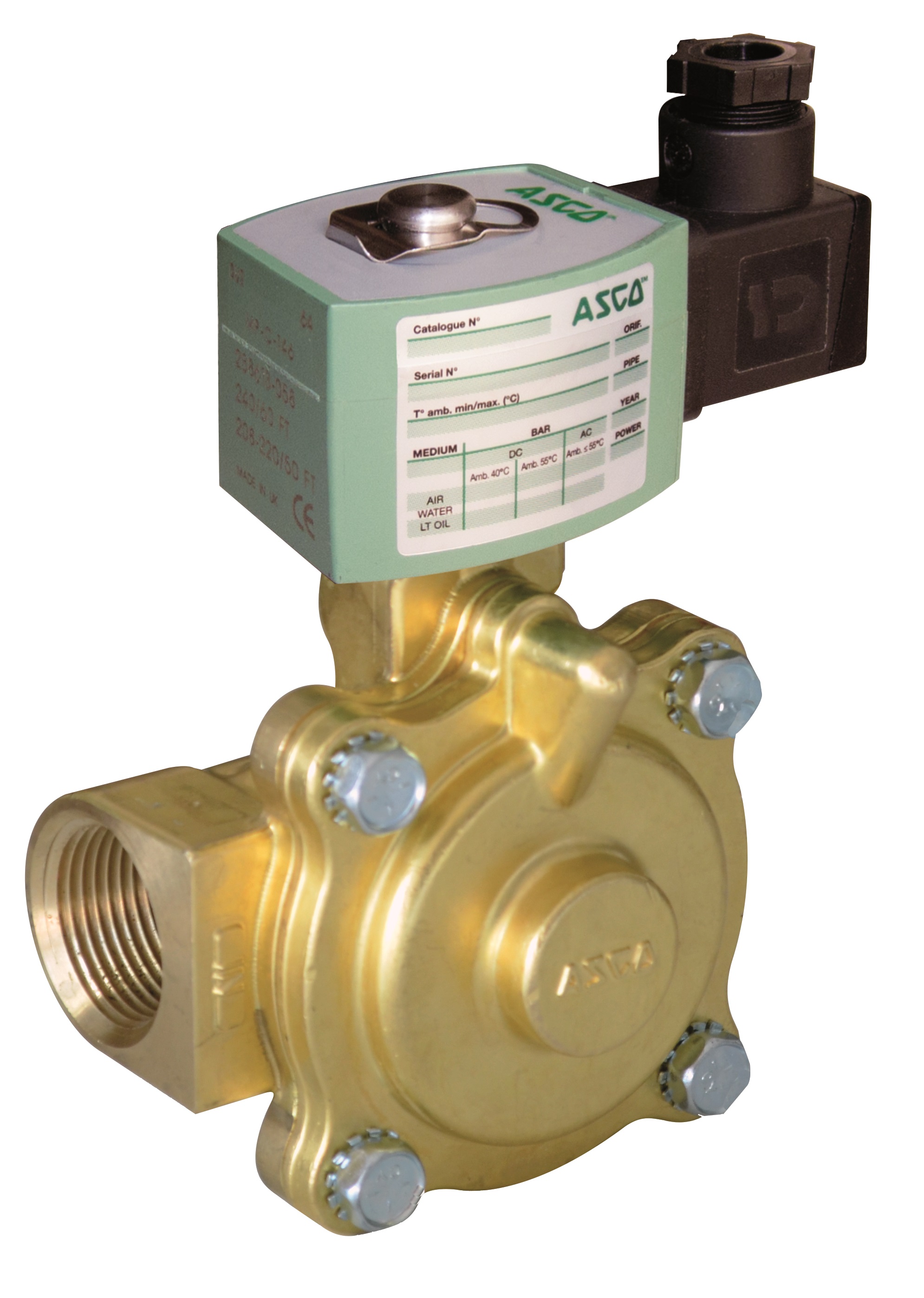

SOL. VALVE HOT WATER/STEAM (230V/50Hz) 2/2NC G1 ORIF=25 BRASS BODY DIAPH. PTFE WITH COIL 15,6W CL.H WITH STANDARD DIN CONNECTOR ROTATABLE
