Reference : SC8223A421.230/50
Catalog Price :
€359.17
Tax excluded 21.00 %
| Supplier series | 223 |
| Specifications | NC (Normally closed) |
| Body material | Brass |
| Sealing | NBR |
| Diameter of connection | 1/4'' |
| Full voltage code | 230/50 |
| Min differential pressure | 0.7 |
| Max differential pressure | 50 |
| Operated | Without manual control |
| Kv Flow rate (m³/h) | 1.3 |
| Fluid working Temp | (-20°C to 90°C) |
| Ambient Temp | (-20°C to 75°C) |
| Compatibility - fluids | High pressure |
| Dimensions (mm) | 65 |
| Type of current | Alternating (~) - AC |
| Voltage | 230V |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 0,742 |
| Eclass | 27220000 |
| Country of origin | NL |
| UNSPSC Code | 31251500 |

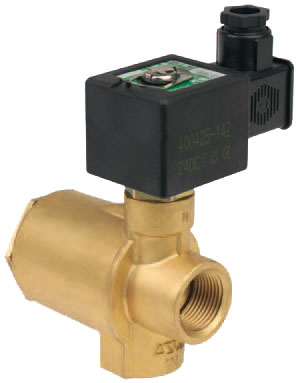

PILOT OPERATED SOLENOID VALVE - 2/2 NC - 1/4" (DN8) - ORIFICE: 8,0 - BRASS - 10,5 W - COIL CLASS: F - IP65 AND CONNECTOR
