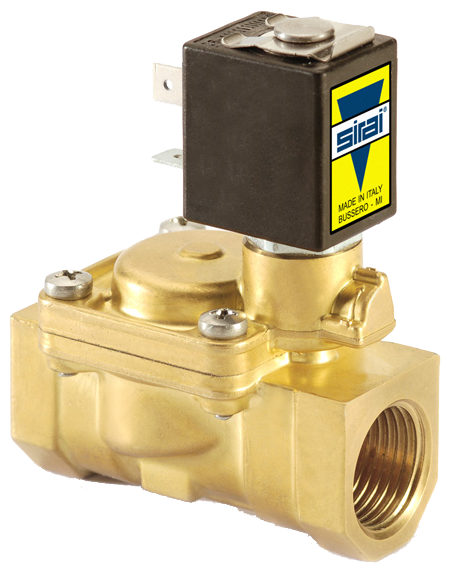

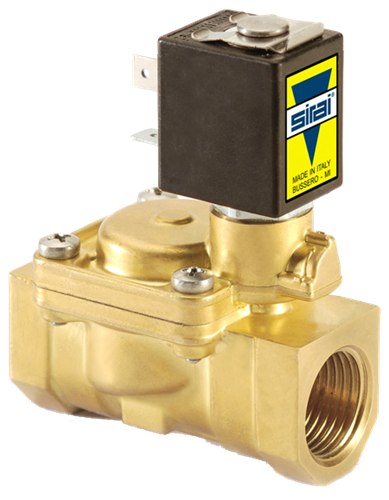

ASCO Solenoid valve Serie L282 - Brass body - 2/2 - NO - G1'' - 24/DC

Name: ASCO Solenoid valve Serie L282 - Brass body - 2/2 - NO - G1'' - 24/DC
Brand: Asco
SKU: L282B01-ZC10A G1X24 V24/DC
Price: 164.61 EUR
Availability: InStock

Reference : L282B01-ZC10A G1X24 V24/DC

Catalog Price :

€164.61

Tax excluded 21.00 %

Stock Belgique (Liège)	2
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	2
Stock usine	Quantity and short lead time to be confirmed on request

Supplier series	L282
Specifications	NO (Normally open)
Body material	Brass
Sealing	NBR
Diameter of connection	1''
Full voltage code	24/DC
Min differential pressure	0.5
Max differential pressure	10
Operated	Without manual control
Kv Flow rate (m³/h)	12
Fluid working Temp	(0°C to 85°C)
Ambient Temp	(-10°C to 50°C)
Compatibility - fluids	Air, neutral gas, water, oil
Dimensions (mm)	105
Type of current	Direct (=) - DC
Voltage	24V
Customs duty number	8481-8099
Gross weight (kg)	1,08
Eclass	27220000
Country of origin	IT
UNSPSC Code	31251500
