Reference : T290D745DSA0000
Catalog Price :
€757.16
Tax excluded 21.00 %
| Body material | Stainless Steel |
| Sealing | PTFE |
| Type of connection | With flanges |
| Diameter of connection | DN25 |
| GN | 10 |
| PN | 16 |
| Control pressure | 2,8 à 10 bar |
| Fluid working Temp | (-)10°C to (+)184°C |
| Operated | NC single-acting air operated |
| Control head | 90 mm |
| Specifications | 2-way - Without bellows |
| Customs duty number | 8481-2090 |
| Gross weight (kg) | 3,7 |
| Eclass | 27290000 |
| Country of origin | PL |
| UNSPSC Code | 27131700 |

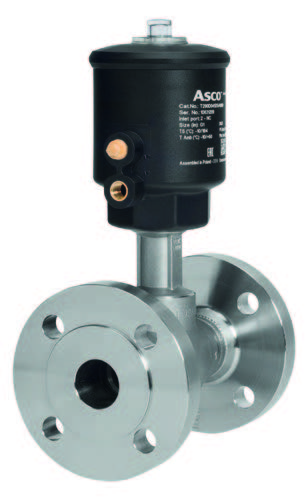

ASCO stainless steel angle seat globe valve 290 series
- 2/2-way function, normally closed, inlet below plug
- DN 25
- Flanged connection to DIN EN 1092-1 PN40
- Flow coefficient Kv 12,1 m³/h
- Maximum allowable pressure 16 bar
- Vacuum applications up to 10-² mbar (10-² Torr/mm Hg)
- Permissible differential pressure: min 0 bar / max 6 bar
- AISI 316L stainless steel body
- PTFE poppet seal
- Body seal in PTFE
- Fluid temperature range -10°C to +184°C
- Pneumatic control Ø63mm single-acting actuator
- Pilot fluid, air, water, filtered
- Pilot pressure from 2,8 to 10 bar
- G 1/8’ tapped control port
- Ambient temperature range -10°C to +60°C
- With optical position indicator
- Anti-waterhammer design
- 2/2-way function, normally closed, inlet below plug
- DN 25
- Flanged connection to DIN EN 1092-1 PN40
- Flow coefficient Kv 12,1 m³/h
- Maximum allowable pressure 16 bar
- Vacuum applications up to 10-² mbar (10-² Torr/mm Hg)
- Permissible differential pressure: min 0 bar / max 6 bar
- AISI 316L stainless steel body
- PTFE poppet seal
- Body seal in PTFE
- Fluid temperature range -10°C to +184°C
- Pneumatic control Ø63mm single-acting actuator
- Pilot fluid, air, water, filtered
- Pilot pressure from 2,8 to 10 bar
- G 1/8’ tapped control port
- Ambient temperature range -10°C to +60°C
- With optical position indicator
- Anti-waterhammer design
