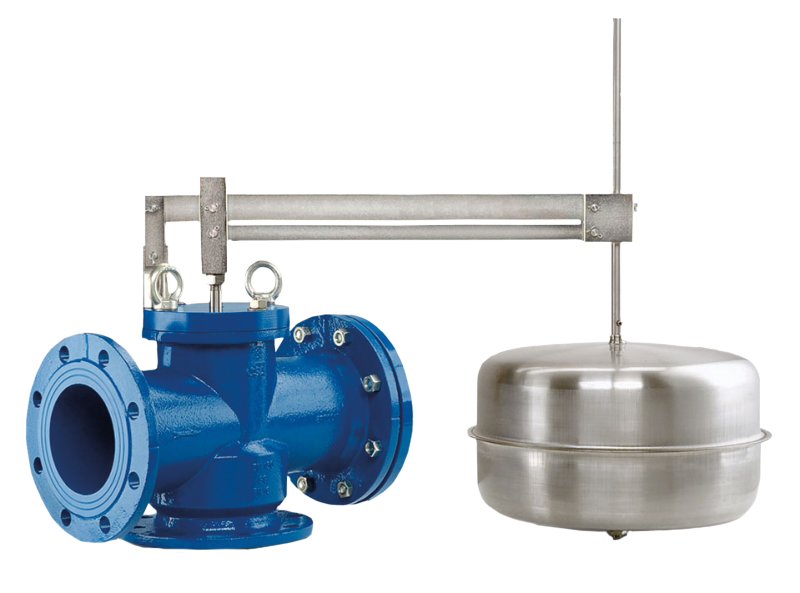

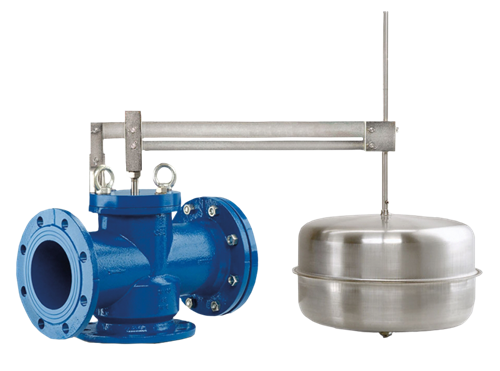

Balanced float valve with single seat model ATHENA - DN100 - PN16

Reference : FLFM.001.100

Brand reference : P070001100

Catalog Price :

1,845.00

Stock Luxembourg (Troisvierges)

-

Stock Belgium (Barchon)

-

Stock Belgium (Chaineux)

-
Manufacturer stock -
Usual lead time :
21-25 working days
Body material Ductile iron
Sealing NBR
Type of connection With flanges
Diameter of connection DN100
GN 16
PN 16
Fluid working Temp 0°C to (+)70°C
Specifications 3 ways
Compatibility - fluids For drinking water distribution networks, fire protection tanks and irrigation networks
Customs duty number 8481-8099
Gross weight (kg) 41
Eclass 37010000
Country of origin IT
UNSPSC Code 40140000
Balanced single seat float valve model ATHENA
- DN 100
- PN 16
- Flanged connection EN 1092-2 GN 16
- Body with angle or in-line passage
- Ductile iron body GJS 500-7 epoxy coated
- Steel cover
- Seat in stainless steel AISI 304
- Seat seal in NBR
- Float in AISI 304 stainless steel
- Maximum working pressure 16 bar
- Maximum temperature +70°C
- Flow coefficient Kv: angled 108 m³/h
- Flow coefficient Kv: straight 90 m³/h
- Float arm adjustable to 0°, 45° and 90°C
