Reference : BABM.004.034
Catalog Price :
€341.25
Tax excluded 21.00 %
| Customs duty number | 8481-8083 |
| Gross weight (kg) | 1,41 |
| Eclass | 37010000 |
| Country of origin | TW |
| UNSPSC Code | 40140000 |

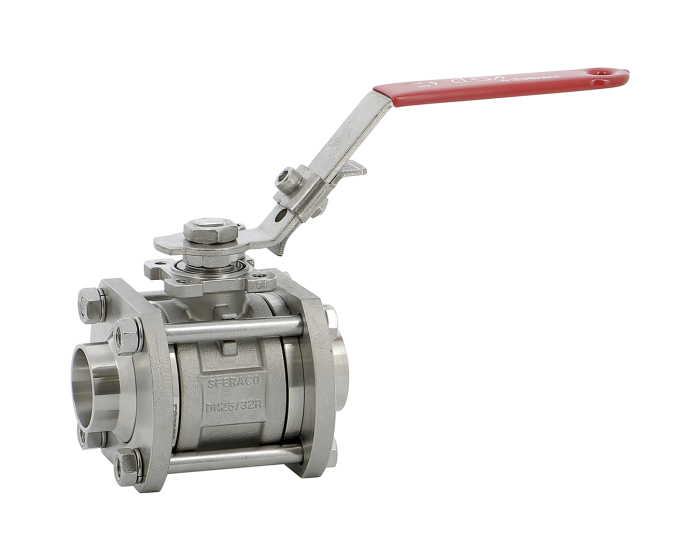

ELSA series 3-piece ball valve
- DN20
- Butt Weld connexion regarding ISO pipe Ø26.9 mm - e : 2
- 316L stainless steel body
- CF3M stainless steel sphere
- Headquarters: TFM1600
- Operating temperature: - 50°C to 210°C
- Max working pressure: 63 bar
- Motorized by installation plan ISO 5211
- Ineligible axis
- Full passage
- Kvs (m³/h): 59
- Valve compliant with EC 1935/2004: FDA
- DN20
- Butt Weld connexion regarding ISO pipe Ø26.9 mm - e : 2
- 316L stainless steel body
- CF3M stainless steel sphere
- Headquarters: TFM1600
- Operating temperature: - 50°C to 210°C
- Max working pressure: 63 bar
- Motorized by installation plan ISO 5211
- Ineligible axis
- Full passage
- Kvs (m³/h): 59
- Valve compliant with EC 1935/2004: FDA
