Reference : BABM.004.044
Catalog Price :
€464.62
Tax excluded 21.00 %
| Customs duty number | 8481-8084 |
| Gross weight (kg) | 1,95 |
| Eclass | 37010000 |
| Country of origin | TW |
| UNSPSC Code | 40140000 |

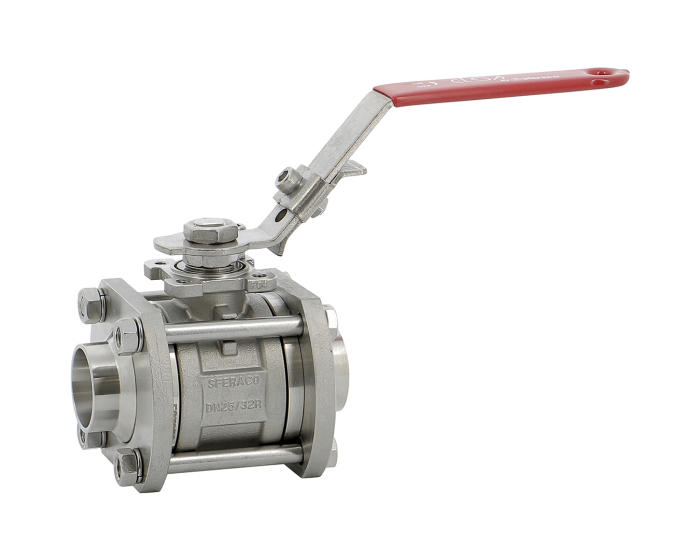

ELSA series 3-piece ball valve
- DN25
- BW connexion
- Operating temperature: - 50°C to 210°C
- Max working pressure: 63 bar
- 316L SS body
- CF3M stainless steel sphere
- Seat : TFM1600
- Motorized by laying plan ISO 5211 (laying plan F04)
- Ineljectable axis
- Full passage
- Kvs (m³/h): 98
- Tap in accordance with EC Regulation 1935/20
