Ball valve - 316 Stainless Steel body - PTFE - DN25 - Flanges GN40 - PN40 - 2/2 - 2 parts - 100°C

Name: Ball valve - 316 Stainless Steel body - PTFE - DN25 - Flanges GN40 - PN40 - 2/2 - 2 parts - 100°C
SKU: BAFP.011.025
Price: 355.40 EUR
Availability: OutOfStock

Reference : BAFP.011.025

Catalog Price :

€355.40

Tax excluded 21.00 %

Assemblage de composants en stock, nécessite un délai supplémentaire jusqu’à 3 jours ouvrables départ de notre magasin

Stock Belgique (Liège)	2
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Usual lead time :
6-10 working days

Body material	316 Stainless Steel
Sealing	PTFE filled with 15% glass fiber
Type of connection	With flanges
Diameter of connection	DN25
GN	40
PN	40
Control pressure	Minimum 6 bar
Fluid working Temp	(-)30°C to (+)180°C
Operated	NC single-acting air operated
Specifications	2 ways - 2 pieces
Compatibility - fluids	For aggressive fluids and aggressive environments and hydrocarbons
Gross weight (kg)	0
Eclass	37010000
UNSPSC Code	40140000
Actuator brand	Festo

Description

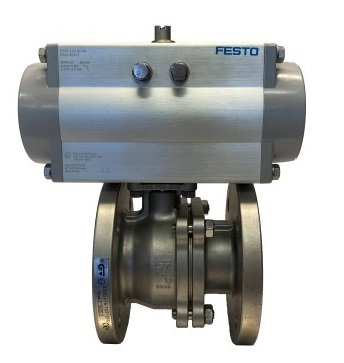

Stainless steel ball valve with 2-piece flanged body
- DN25
- Flange connection according to EN 1092-1 PN40
- Full bore
- Maximum operating pressure 40 bar
- Body in 316 stainless steel (1.4408)
- 316 stainless steel sphere (1.4408)
- PTFE seats +15% fiberglass
- FKM axle O-ring
- Fluid temperature range from -30°C to +100°C
- Inejectable axis
- Double anti-static device (especially required with flammable fluids)
- Fire safety design (Fire Safe)
- Wear compensation system using Belleville washers
- Pneumatically operated
- Operation: Equipped with a Festo DFPD Series single-acting actuator
- Normally closed function
- Pilot pressure: minimum 6 bar
- Length between flanges according to EN 558 series 27
- ATEX Ex II 2 GD c T6 - T3/125°C
