Reference : BATM.013.038
Brand reference : 2353N203L
Catalog gross price :
€26.67
Tax excluded 21.00 %
| Body material | Brass |
| Sealing | PTFE |
| Type of connection | Threaded Female |
| Diameter of connection | 3/8'' |
| PN | 12 |
| Fluid working Temp | 0°C to (+)60°C |
| Operated | Manually |
| Specifications | 2 ways - 2 pieces |
| Compatibility - fluids | For compressed air |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 0,2777 |
| Eclass | 37010000 |
| Country of origin | IT |
| UNSPSC Code | 40140000 |

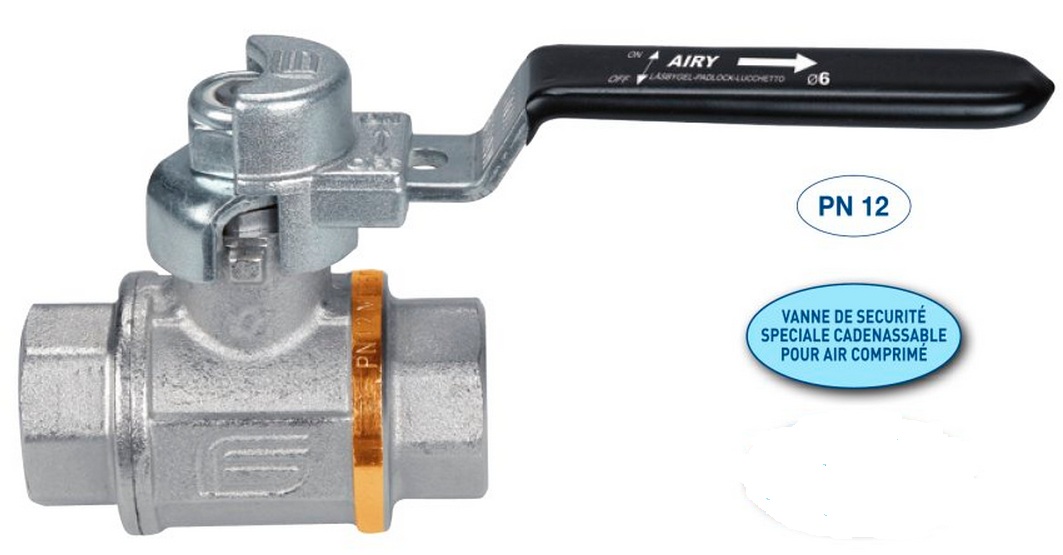

Brass Pressure Relief Ball Valve AIRY LOCK Series
- 3/8" BSP threaded connection
- Reduced passage on the ventilation route
- 3/2 function with decompression hole
- Maximum operating pressure for air 12 bar
- Brass body and sphere
- PTFE seats and glands
- Operating temperature range for air from 0°C to +60°C
- Manual control by padlockable lever in closed/open position (for Ø6mm padlock not supplied)
- 3/8" BSP threaded connection
- Reduced passage on the ventilation route
- 3/2 function with decompression hole
- Maximum operating pressure for air 12 bar
- Brass body and sphere
- PTFE seats and glands
- Operating temperature range for air from 0°C to +60°C
- Manual control by padlockable lever in closed/open position (for Ø6mm padlock not supplied)
