Reference : BAFP.001.040
Catalog Price :
€852.99
Tax excluded 21.00 %
| Body material | GG25 cast iron |
| Sealing | FPM (Viton®) / PTFE |
| Type of connection | With flanges |
| Diameter of connection | DN40 |
| GN | 10/16 |
| PN | 16 |
| Control pressure | Minimum 6 bar |
| Fluid working Temp | (-)10°C to (+)200°C |
| Operated | NC single-acting air operated |
| Specifications | 2 ways - 2 pieces |
| Compatibility - fluids | For common compatible fluids, not suitable for steam or compressed air |
| Customs duty number | 8481-8099 |
| Gross weight (kg) | 11,9 |
| Eclass | 37010000 |
| Country of origin | FR |
| UNSPSC Code | 40140000 |

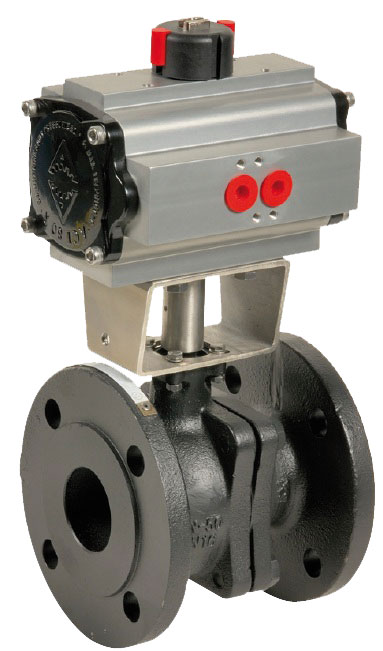

CAST IRON BALL V. 507 DN40 + ASR130 PNEU. ACT. Spring return / DP=10bar max
