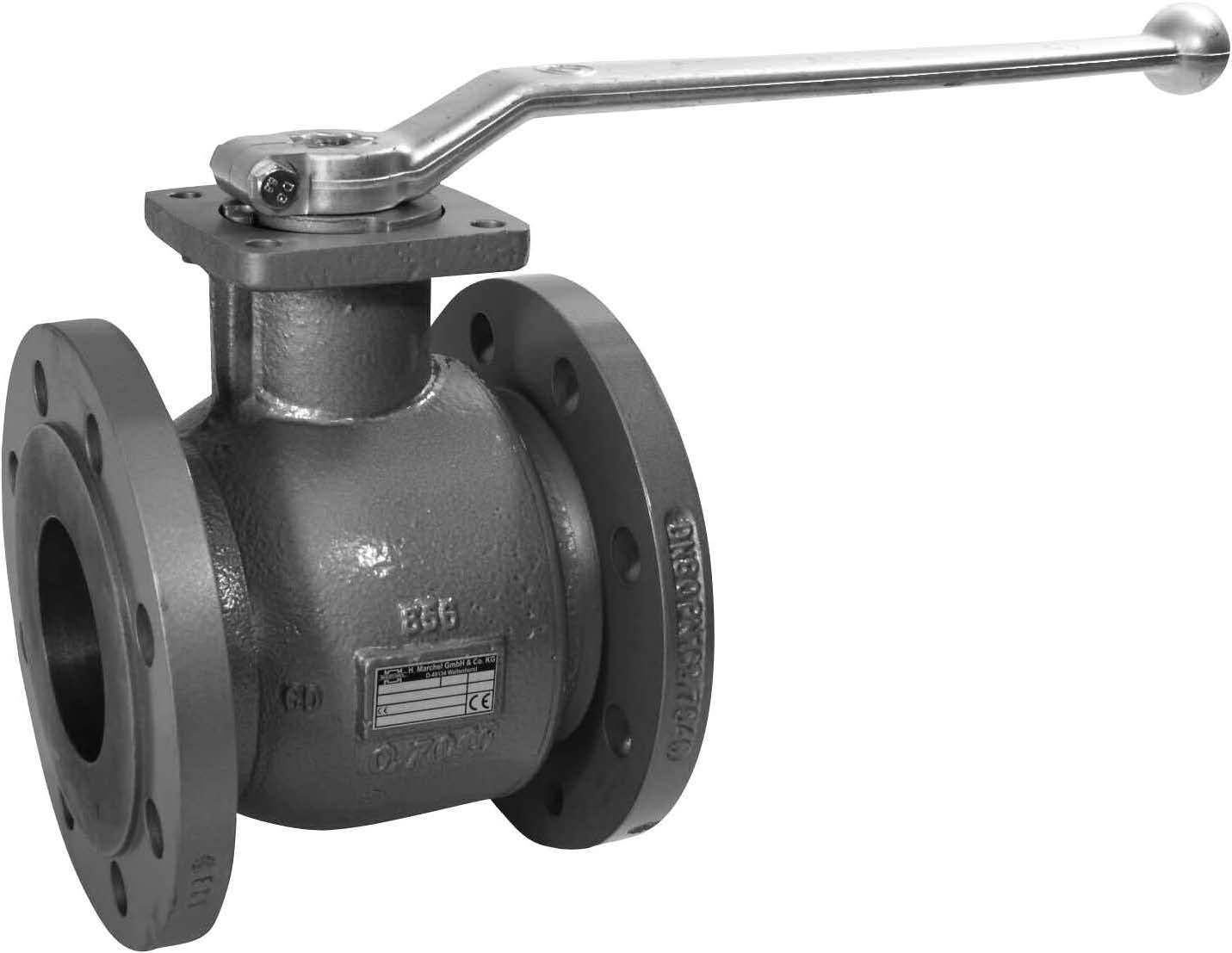

Ball valve - GGG40 Cast Iron body - PTFE - DN65 - Flanges GN16 - PN16 - 2/2 - 60°C

Reference : BAFM.009.065

Catalog gross price :

€389.68

Tax excluded 21.00 %

Stock Belgique (Liège)	2
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	-
Stock usine	Quantity and short lead time to be confirmed on request

Body material	GGG40 cast iron
Sealing	PTFE
Type of connection	With flanges
Diameter of connection	DN65
GN	16
PN	16
Fluid working Temp	(-)10°C to (+)60°C
Operated	Manually
Specifications	2 ways - 2 pieces
Compatibility - fluids	For water, light and heavy oil and gas
Customs duty number	8481-8081
Gross weight (kg)	14,1
Eclass	37010000
Country of origin	DE
UNSPSC Code	40140000
