Reference : BABM.001.044
Brand reference : 2026 06
Catalog Price :
€51.92
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | PTFE filled with 15% glass fiber |
| Type of connection | Butt weld |
| Diameter of connection | 1'' |
| PN | 63 |
| Fluid working Temp | (-)25°C to (+)180°C |
| Operated | Manually |
| Specifications | 2 ways - 3 pieces - padlockable |
| Compatibility - fluids | For aggressive fluids and aggressive environments and demineralized water |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 0,99 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

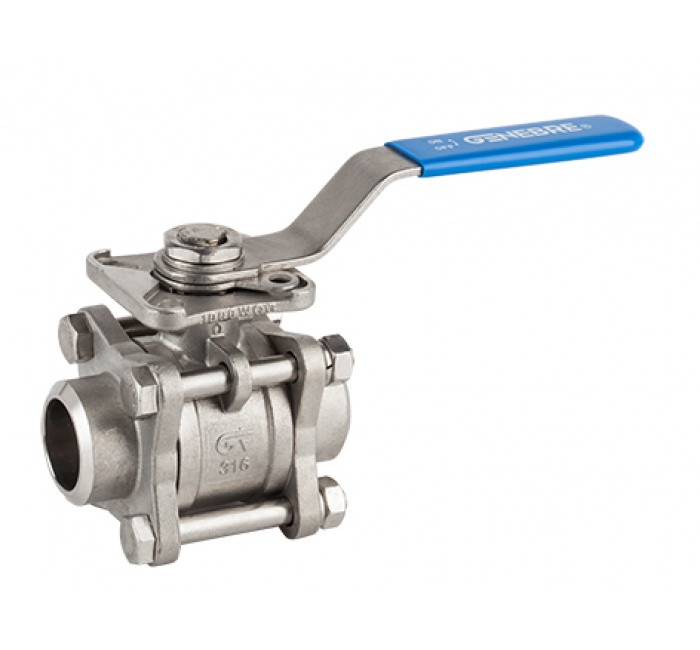

Stainless steel ball valve body 3 pieces manual operated
- 2 ways
- DN 25
- Weld connection 1" BW (but weld Ø33,5mm) according to ANSI B 16.25
- Full passage
- Maximum working pressure 63 bar
- Stainless steel body 1.4408 (CF8M)
- Stainless steel sphere 1.4408
- Seats made of PTFE loaded with 15% glass fiber
- Rod joint in FKM (Viton)
- Belleville Washer Wear Compensation System
- Fluid temperature range from -25°C to +180°C
- Manual control by lockable stainless steel lever
- Motorisable, direct mounting
- Installation plan ISO 5211 F04-F05, square 45° 11mmx11mm
- 2 ways
- DN 25
- Weld connection 1" BW (but weld Ø33,5mm) according to ANSI B 16.25
- Full passage
- Maximum working pressure 63 bar
- Stainless steel body 1.4408 (CF8M)
- Stainless steel sphere 1.4408
- Seats made of PTFE loaded with 15% glass fiber
- Rod joint in FKM (Viton)
- Belleville Washer Wear Compensation System
- Fluid temperature range from -25°C to +180°C
- Manual control by lockable stainless steel lever
- Motorisable, direct mounting
- Installation plan ISO 5211 F04-F05, square 45° 11mmx11mm
