Reference : BATM.021.012
Brand reference : 2025 04
Catalog Price :
€27.55
Tax excluded 21.00 %
| Body material | 316 Stainless Steel |
| Sealing | PTFE filled with 15% glass fiber |
| Type of connection | Threaded Female |
| Diameter of connection | 1/2'' |
| PN | 63 |
| Fluid working Temp | (-)25°C to (+)180°C |
| Operated | Manually |
| Specifications | 2 ways - 3 pieces - padlockable |
| Compatibility - fluids | For aggressive fluids and aggressive environments and demineralized water |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 2,46 |
| Eclass | 37010000 |
| Country of origin | ES |
| UNSPSC Code | 40140000 |

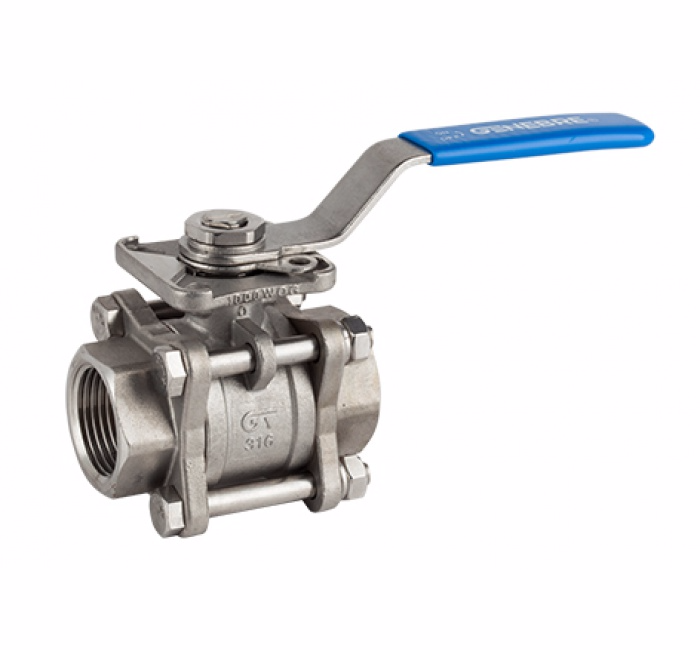

Stainless Steel Ball Valve Body 3 Piece Hand Operated
- 2 ways
- DN 15
- Threaded connection G 1/2" according to EN 10226-1
- Full bore
- Maximum working pressure 63 bar
- Stainless steel body 1.4408 (CF8M)
- Stainless steel sphere 1.4408
- PTFE seats loaded with 15% fiberglass
- FKM rod seal (Viton)
- Belleville washer wear compensation system
- Fluid temperature range from -25°C to +180°C
- Manual control by locking stainless steel lever
- Motorized, direct mounting
- ISO 5211 F03 installation plane, square at 45° 9mmx9mm
- 2 ways
- DN 15
- Threaded connection G 1/2" according to EN 10226-1
- Full bore
- Maximum working pressure 63 bar
- Stainless steel body 1.4408 (CF8M)
- Stainless steel sphere 1.4408
- PTFE seats loaded with 15% fiberglass
- FKM rod seal (Viton)
- Belleville washer wear compensation system
- Fluid temperature range from -25°C to +180°C
- Manual control by locking stainless steel lever
- Motorized, direct mounting
- ISO 5211 F03 installation plane, square at 45° 9mmx9mm
