Reference : BAFM.003.050
Catalog Price :
€1,316.08
Tax excluded 21.00 %
| Body material | Forged steel |
| Sealing | PTFE + graphite |
| Type of connection | With flanges |
| Diameter of connection | DN50 |
| GN | 40 |
| PN | 40 |
| Fluid working Temp | (-)28°C to (+)200°C |
| Operated | Manually |
| Specifications | 2 ways - 2 pieces - Fire Safe - Vacuum resistance |
| Compatibility - fluids | For chemical, pharmaceutical, petrochemical industry, hydraulic system and compressed air |
| Customs duty number | 8481-8081 |
| Gross weight (kg) | 13,5 |
| Eclass | 37010000 |
| Country of origin | IT |
| UNSPSC Code | 40140000 |

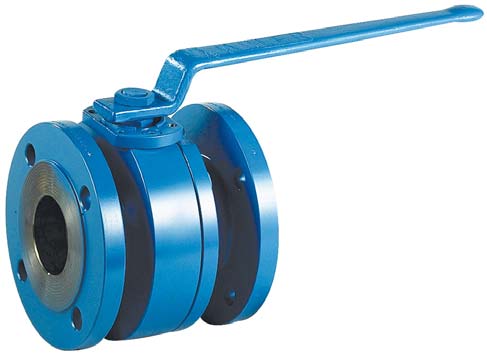

CARBON STEEL BALL V. 750 PN16/40 DN50 2pc A105 Fire safe ADLER
