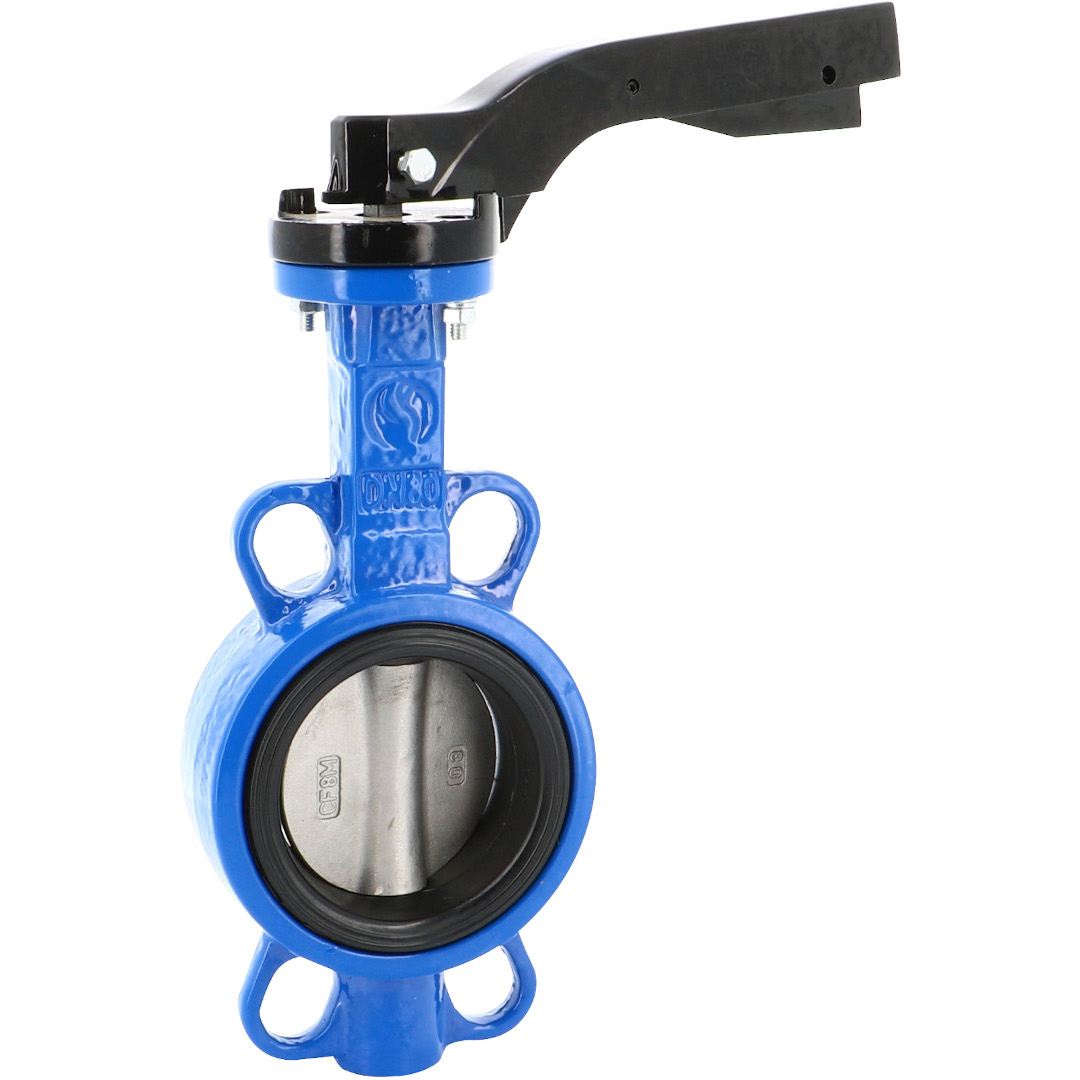

Non contractual picture
Product details Associated products

Butterfly valve - GG25 Cast Iron - EPDM - DN32 - Wafer GN10/16 - PN16 - Hand lever - 110°C

Reference : BUWM.004.032

Catalog Price :

€81.02
Tax excluded 21.00 %
Stock Belgique (Liège) -
Stock Belgique (Hainaut) -
Stock Luxembourg (Troisvierges) -
Stock usine Quantity and short lead time
to be confirmed on request
Usual lead time :
6-10 working days
Body material Grey cast iron (GG20-25)
Sealing Vulcanised EPDM
Type of connection Wafer
Diameter of connection DN32
GN 10/16
PN 16
Fluid working Temp (-)10°C to (+)110°C
Operated Manual by notched lever
Compatibility - fluids For cold and hot water, sea water, demineralized water, alcohol, milk of lime, mercury, alkalis and sodium hydroxide
Customs duty number 8481-8085
Gross weight (kg) 2
Eclass 37010000
Country of origin CN
UNSPSC Code 40140000
BUTTERFLY V.1123 PN10/16 ANSI150 D32-N40 Wafer GG25/CF8M/EPDM
