Reference : BULM.002.450
Catalog Price :
€5,945.21
Tax excluded 21.00 %
| Body material | Grey cast iron (GG20-25) |
| Sealing | Vulcanised EPDM |
| Type of connection | LUG |
| Diameter of connection | DN450 |
| GN | 10 |
| PN | 10 |
| Fluid working Temp | (-)10°C to (+)120°C |
| Operated | Manual by handwheel gear reducer |
| Compatibility - fluids | For cold and hot water, sea water, demineralized water, alcohol, milk of lime, mercury, alkalis and sodium hydroxide |
| Customs duty number | 8481-8085 |
| Gross weight (kg) | 147 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

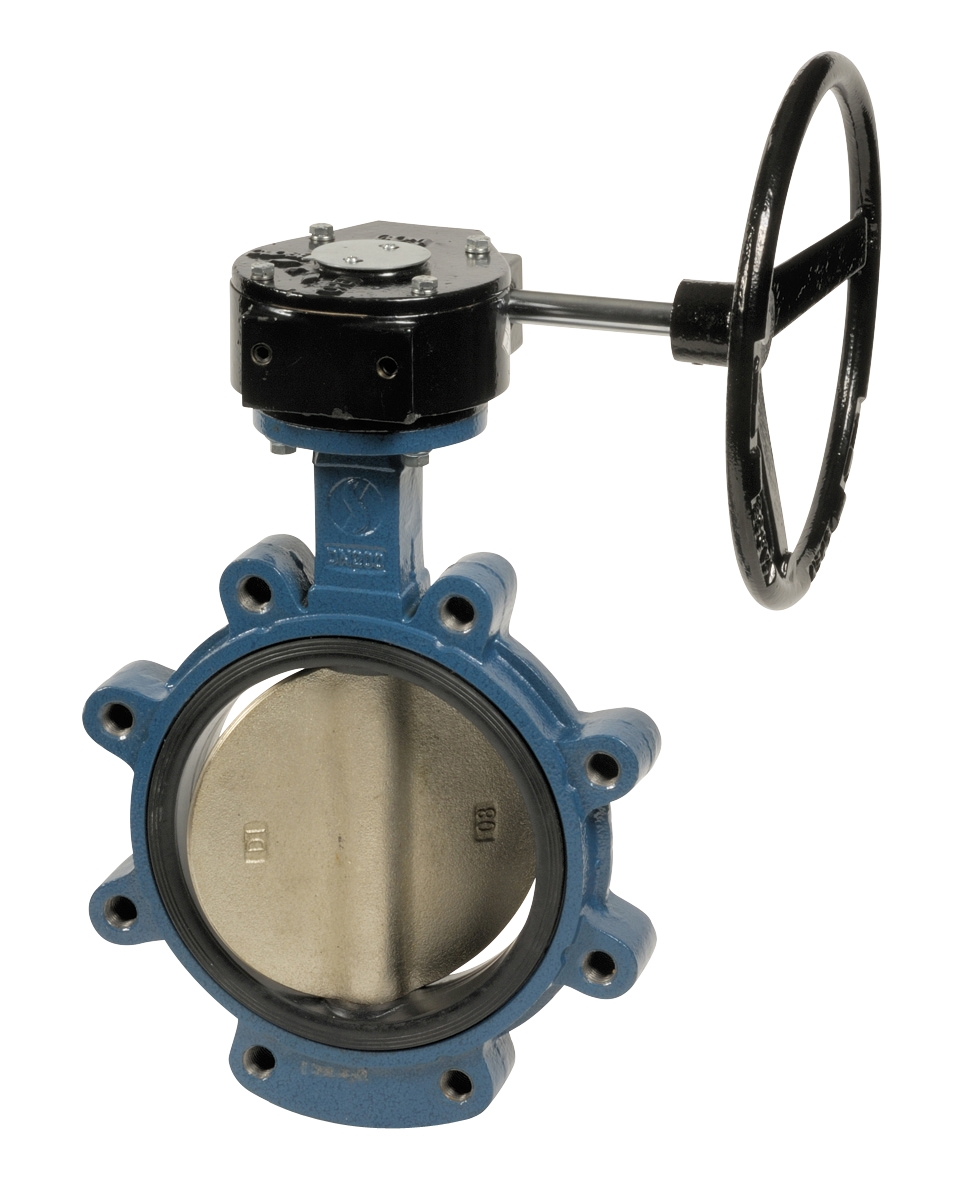

BUTTERFLY V. 1133 PN10 DN450 Lug GG25/CF8M/EPDM + Gearbox
