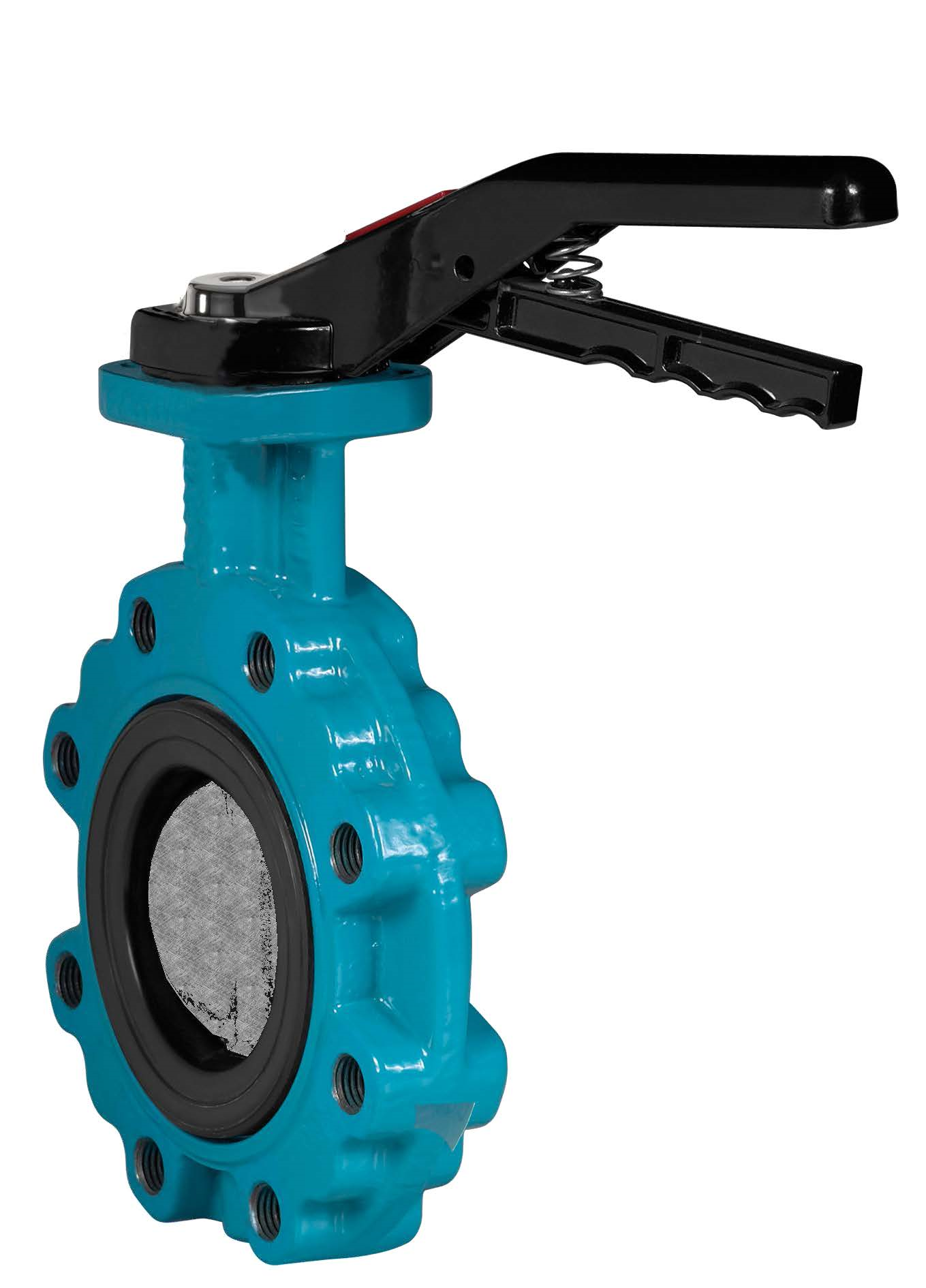

Butterfly valve - GGG40 Cast Iron - NBR - DN100 - LUG GN16 - PN10 - Hand lever - 100°C

Reference : BULM.003.100

Brand reference : 88751933

Catalog Price :

€249.87

Tax excluded 21.00 %

Stock Belgique (Liège)	2
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	2
Stock usine	Quantity and short lead time to be confirmed on request

Body material	Nodular cast iron (GGG40-50)
Sealing	NBR
Type of connection	LUG
Diameter of connection	DN100
GN	16
PN	10
Fluid working Temp	(-)10°C to (+)100°C
Operated	Manual by notched lever
Compatibility - fluids	For common compatible fluids
Customs duty number	8481-8085
Gross weight (kg)	8,431
Eclass	37010000
UNSPSC Code	40140000

Documents

352152-catalogue méca-fluid (v.3.2019.fr)_page85.pdf
