Reference : BUWM.001.100
Brand reference : 88661910
Catalog Price :
€199.39
Tax excluded 21.00 %
| Body material | Nodular cast iron (GGG40-50) |
| Sealing | EPDM |
| Type of connection | Wafer |
| Diameter of connection | DN100 |
| GN | 16 |
| PN | 16 |
| Fluid working Temp | (-)10°C to (+)120°C |
| Operated | Manual by notched lever |
| Compatibility - fluids | For non-aggressive fluids, water, demineralized water, water without traces of hydrocarbons and non-lubricated air |
| Customs duty number | 8481-8085 |
| Gross weight (kg) | 5,13 |
| Eclass | 37010000 |
| Country of origin | CN |
| UNSPSC Code | 40140000 |

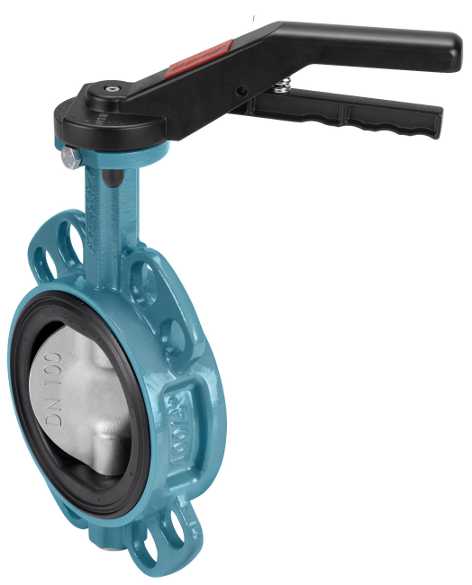

GEMU Series 487 Manually Operated Butterfly Valve
- DN 100
- WAFER type with centering lugs
- Connection: to be placed between PN10/16 and ASME B16.5 class 150 flanges
- Maximum operating pressure 16 bar
- Cast iron body EN-GJS-400-15 (GGG40) epoxy coated 250 µm (RAL 5021)
- CF8M stainless steel butterfly, 1.4408
- AISI 420, 1.4021 stainless steel axle
- Replaceable EPDM cuff
- Fluid temperature range from -10°C to +120°C
- Ambient temperature range from -10°C to +70°C
- Control by notched lever
- Dimensions according to ISO 5752/20, EN 558-1/20, API 609 category A
- Leak test according to EN 12266-1/P12 leak rate A
- Old reference: 487100W332A1EL0AHL14
- DN 100
- WAFER type with centering lugs
- Connection: to be placed between PN10/16 and ASME B16.5 class 150 flanges
- Maximum operating pressure 16 bar
- Cast iron body EN-GJS-400-15 (GGG40) epoxy coated 250 µm (RAL 5021)
- CF8M stainless steel butterfly, 1.4408
- AISI 420, 1.4021 stainless steel axle
- Replaceable EPDM cuff
- Fluid temperature range from -10°C to +120°C
- Ambient temperature range from -10°C to +70°C
- Control by notched lever
- Dimensions according to ISO 5752/20, EN 558-1/20, API 609 category A
- Leak test according to EN 12266-1/P12 leak rate A
- Old reference: 487100W332A1EL0AHL14
