Reference : BUWM.002.100
Brand reference : 88749631
Catalog gross price :
€209.75
Tax excluded 21.00 %
| Body material | Nodular cast iron (GGG40-50) |
| Sealing | NBR |
| Type of connection | Wafer |
| Diameter of connection | DN100 |
| GN | 16 |
| PN | 10 |
| Fluid working Temp | (-)10°C to (+)100°C |
| Operated | Manual by notched lever |
| Compatibility - fluids | Pour eau, eau avec traces d'hydrocarbure, huile, f |
| Customs duty number | 8481-8085 |
| Gross weight (kg) | 4,992 |
| Eclass | 37010000 |
| Country of origin | DE |
| UNSPSC Code | 40140000 |

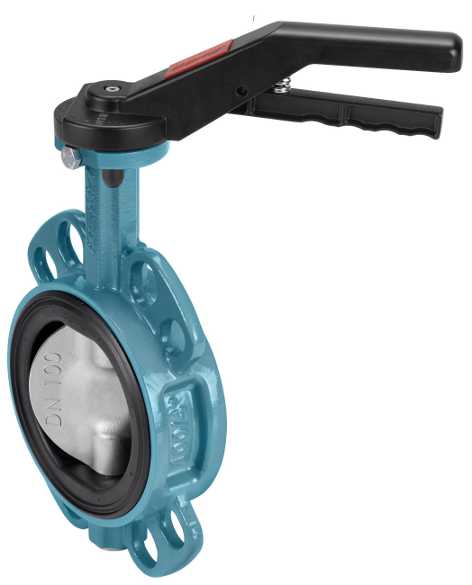

GEMU R487 Series Manually Operated Butterfly Valve
- DN 100
- WAFER type with centering lugs
- Connection: For placement between PN10/16 and ASME B16.5 class 150 flanges
- Maximum operating pressure: 16 bar
- Cast iron body EN-GJS-400-15 (GGG40) with 250 µm epoxy coating (RAL 5021)
- Disc: CF8M, 1.4408 stainless steel
- Stem: AISI 420, 1.4021 stainless steel
- Replaceable NBR liner
- Fluid temperature range: -10°C to +100°C
- Ambient temperature range: -10°C to +70°C
- Notched lever actuation
- Dimensions according to ISO 5752/20, EN 558-1/20, API 609 Category A
- Leak test according to EN 12266-1/P12 leak rate A
- Previous reference: 487100W232A1NL0AHL14
- DN 100
- WAFER type with centering lugs
- Connection: For placement between PN10/16 and ASME B16.5 class 150 flanges
- Maximum operating pressure: 16 bar
- Cast iron body EN-GJS-400-15 (GGG40) with 250 µm epoxy coating (RAL 5021)
- Disc: CF8M, 1.4408 stainless steel
- Stem: AISI 420, 1.4021 stainless steel
- Replaceable NBR liner
- Fluid temperature range: -10°C to +100°C
- Ambient temperature range: -10°C to +70°C
- Notched lever actuation
- Dimensions according to ISO 5752/20, EN 558-1/20, API 609 Category A
- Leak test according to EN 12266-1/P12 leak rate A
- Previous reference: 487100W232A1NL0AHL14
