Reference : BUWM.002.300
Brand reference : 88749636
Catalog gross price :
€1,236.46
Tax excluded 21.00 %
| Body material | Nodular cast iron (GGG40-50) |
| Sealing | NBR |
| Type of connection | Wafer |
| Diameter of connection | DN300 |
| GN | 10 |
| PN | 10 |
| Fluid working Temp | (-)10°C to (+)100°C |
| Operated | Manual by handwheel gear reducer |
| Compatibility - fluids | Pour eau, eau avec traces d'hydrocarbure, huile, f |
| Customs duty number | 8481-8085 |
| Gross weight (kg) | 0 |
| Eclass | 37010000 |
| Country of origin | DE |
| UNSPSC Code | 40140000 |

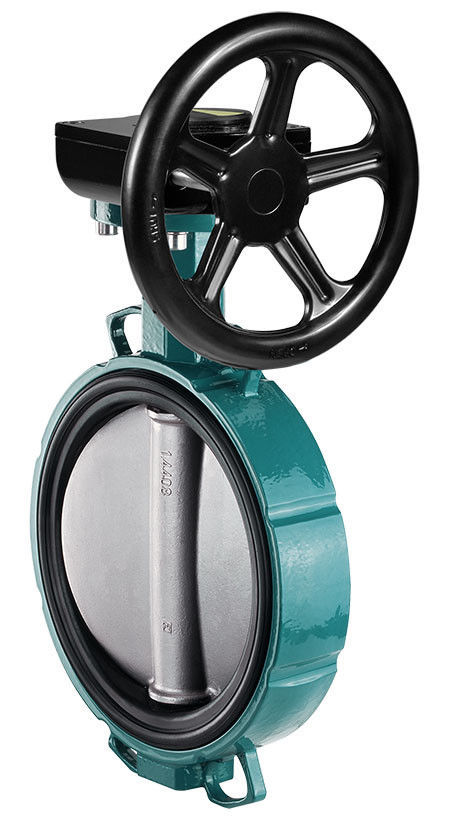

Manual Butterfly Valve – GEMÜ Series 487
- DN 300
- WAFER type with centering lugs
- Connection: to be installed between PN10/16 and ASME B16.5 Class 150 flanges
- Maximum operating pressure: 10 bar
- Body: ductile iron EN-GJS-400-15 (GGG40), epoxy-coated 250 µm (RAL 5021)
- Disc: stainless steel CF8M, 1.4408
- Shaft: stainless steel AISI 420, 1.4021
- Replaceable liner in NBR
- Fluid temperature range: -10°C to +100°C
- Ambient temperature range: -10°C to +70°C
- Manual operation via gear-operated handwheel
- Face-to-face dimensions according to ISO 5752/20, EN 558-1/20, API 609 Category A
- Leak test according to EN 12266-1/P12, leakage rate A
- Former reference: 487300W232A1NL0GB232
- DN 300
- WAFER type with centering lugs
- Connection: to be installed between PN10/16 and ASME B16.5 Class 150 flanges
- Maximum operating pressure: 10 bar
- Body: ductile iron EN-GJS-400-15 (GGG40), epoxy-coated 250 µm (RAL 5021)
- Disc: stainless steel CF8M, 1.4408
- Shaft: stainless steel AISI 420, 1.4021
- Replaceable liner in NBR
- Fluid temperature range: -10°C to +100°C
- Ambient temperature range: -10°C to +70°C
- Manual operation via gear-operated handwheel
- Face-to-face dimensions according to ISO 5752/20, EN 558-1/20, API 609 Category A
- Leak test according to EN 12266-1/P12, leakage rate A
- Former reference: 487300W232A1NL0GB232
