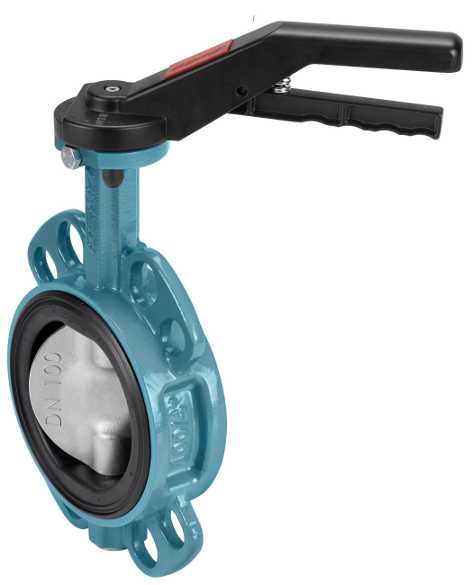

Butterfly valve - GGG40/NBR/CF8M - DN50 - WAFER GN6/10/16 ANSI 150 - PN10 - Hand lever

Reference : BUWM.002.050

Brand reference : 88755226

Catalog Price :

€139.83

Tax excluded 21.00 %

Stock Belgique (Liège)	2
Stock Belgique (Hainaut)	-
Stock Luxembourg (Troisvierges)	2
Stock usine	Quantity and short lead time to be confirmed on request

Body material	Nodular cast iron (GGG40-50)
Sealing	NBR
Type of connection	Wafer
Diameter of connection	DN50
GN	16
PN	10
Fluid working Temp	(-)10°C to (+)100°C
Operated	Manual by notched lever
Compatibility - fluids	For water, water with traces of hydrocarbon, oil, fuel oil, natural gas, compressed air and glycol
Customs duty number	8481-8085
Gross weight (kg)	2,32
Eclass	37010000
Country of origin	DE
UNSPSC Code	40140000

Documents

4412-catalogue méca-fluid (v.3.2019.fr)_page80.pdf
